Thruster entanglement during shuttle tanker operations
- DP Event
- Published on 13 September 2016
- Generated on 30 May 2025
- DPE 03/16
- 1 minute read
Undesired event

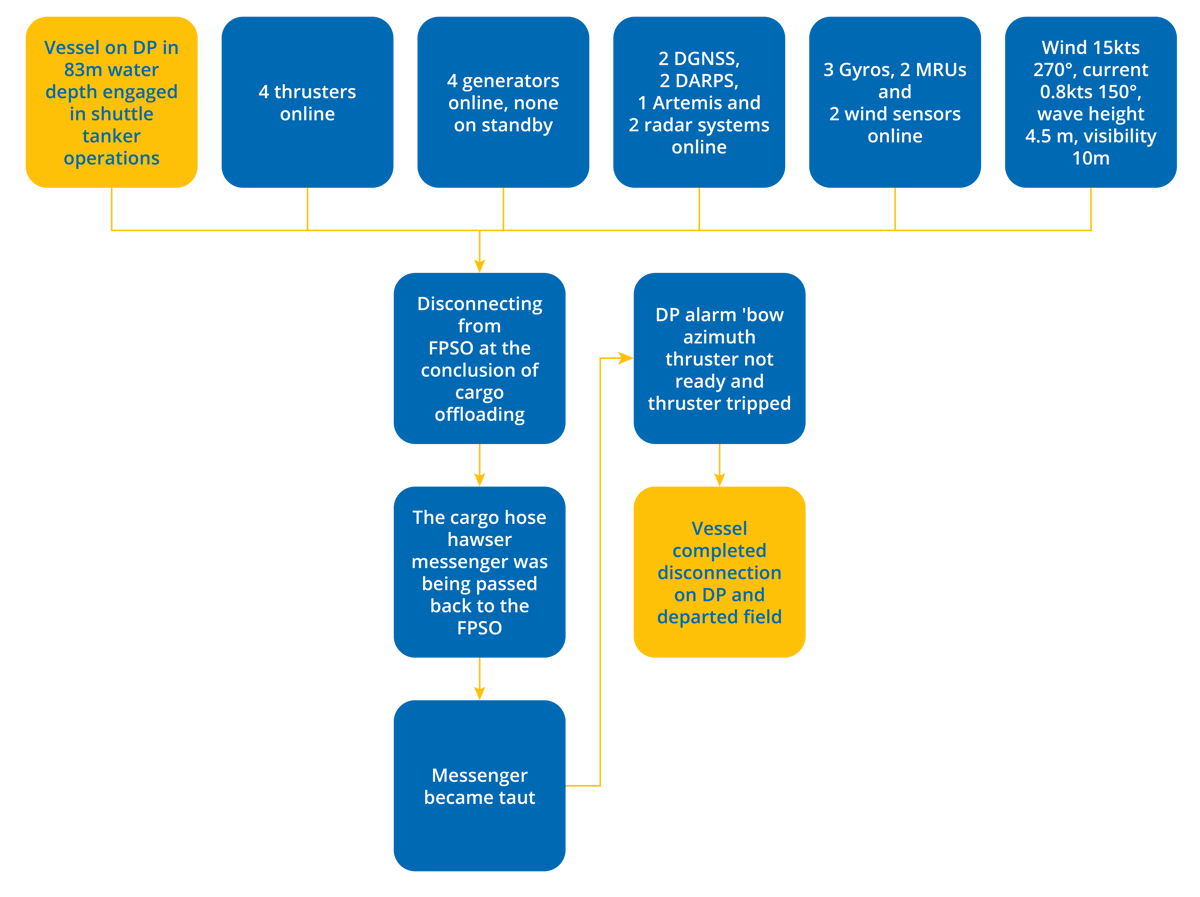

Operations were conducted according to procedure which need to be modified to limit the rope in the water to prevent entanglement.
Comments
Operations were conducted according to procedures. It was concluded that the procedures for this operation needed to be modified to limit the amount of rope in the water to prevent bow thruster entanglement.
Considerations
- Operations were being conducted within limits that allowed for disconnection to be completed in a controlled manner using the redundancy of thrusters.
- All vessel types are reminded to review procedures that might affect DP operations, particularly those covering downlines, hoses, ropes, etc.
