Failure of welding on hyperbaric rescue chamber medical lock door assembly

  • Safety Flash
  • Published on 24 August 2007
  • Generated on 16 June 2025
  • IMCA SF 08/07
  • 2 minute read

A Member has reported that a weld failed on the medical lock door assembly of a hyperbaric rescue chamber.

What happened?

The incident occurred during a pressure test of the system and an employee sustained serious injuries after being struck by the displaced medical lock door.

A report commissioned by the company, conducted by an independent metallurgical laboratory, identified that the welds in the bracket could have failed at any time due to there being less than 1 mm of weld remaining. This was partly due to corrosion of the metal and partly due to poor welding.

It was calculated that a downward force of 10-20 kg would have been sufficient to cause the weld to fail. The full penetration weld within the bracket was only 0.8-1.0 mm thick at best and the supporting fillet weld had no fusion along one of its lengths.

These pictures show the hyperbaric rescue chamber medical lock door assembly and the positioning of the C clamp retaining bracket, the second picture clearly indicating a weld feature that failed whilst in operation.

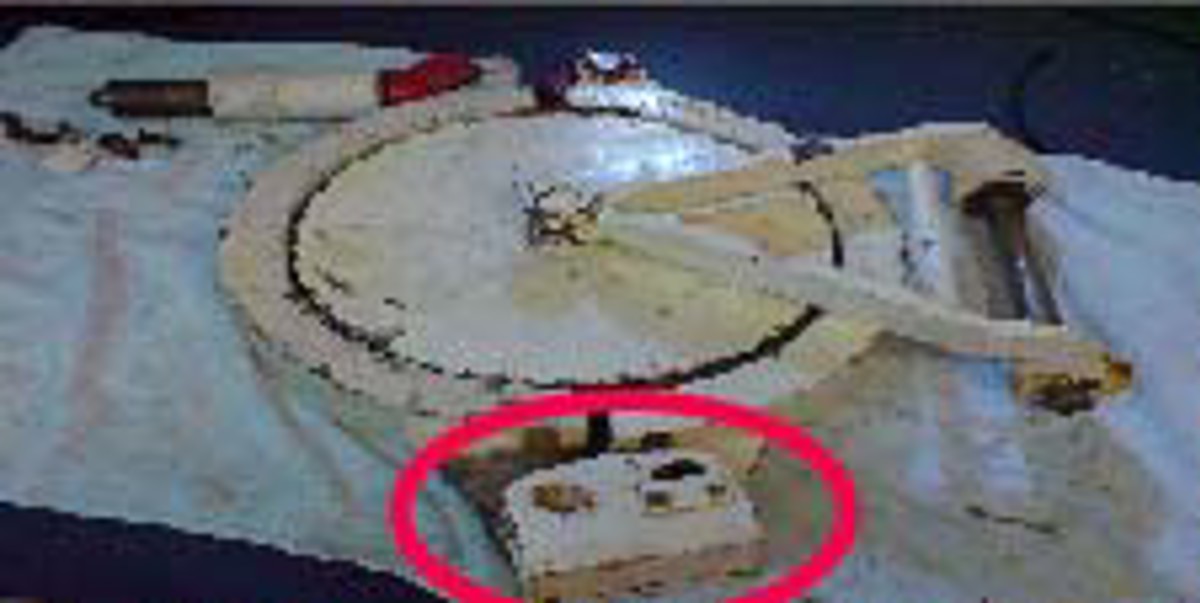

medical lock door assembly

medical lock door assembly

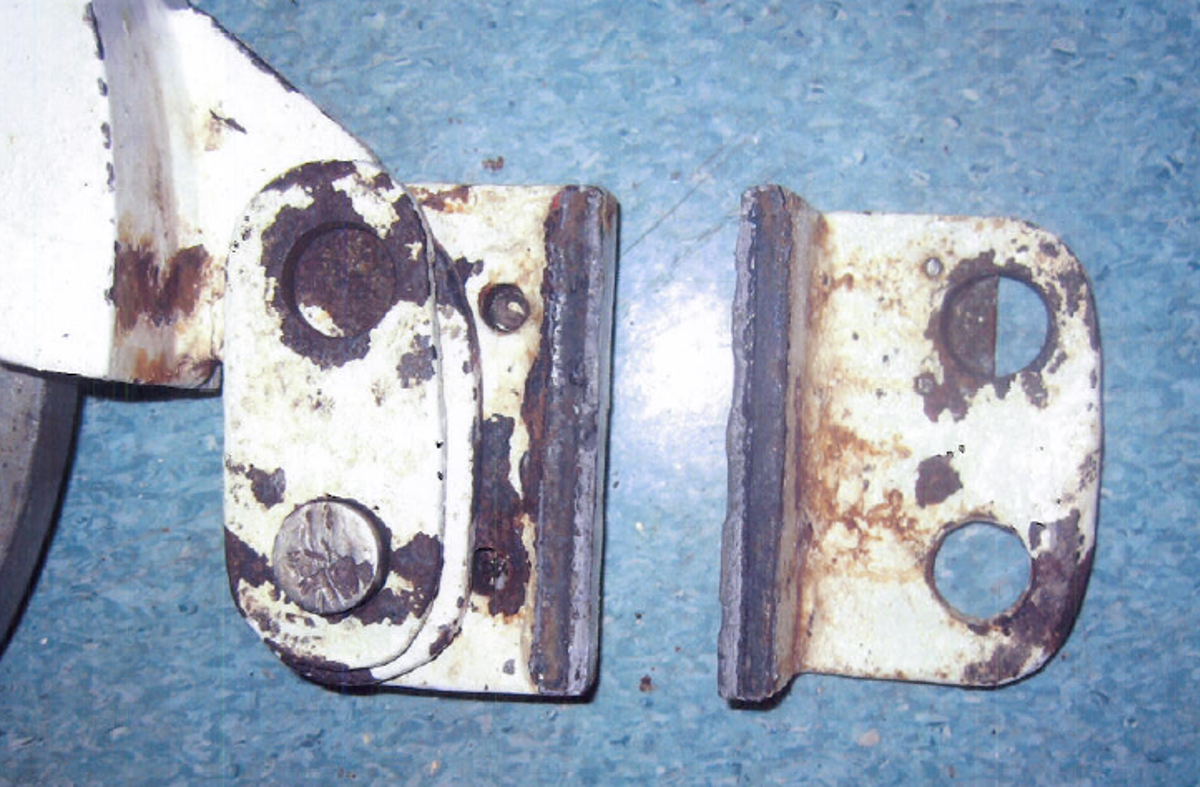

C clamp retaining bracket (after failure)

C clamp retaining bracket (after failure)

What were the causes?

The company’s findings were:

  • The C clamp retaining bracket was never regarded as being a load-bearing or critical component and as such was never included in ‘routine’ checking or inspection of the assembly.

  • At the time of installation of the assembly, the engineering, certification or inspection regimes were not as stringent as they are now.

Lessons learned

It is recommended that all load-bearing components within a dive spread are thoroughly inspected for signs of corrosion or damage.

Latest Safety Flashes:

LTI: Back injury in Confined Space (Tank Entry)

A worker sustained a back injury while transiting through a lightening hole within a confined space.

Read more
Injury to thumb during lifting operations

Whilst attempting to land a piece of equipment onto a flatbed trailer, a crew person suffered a thumb injury.

Read more
MAIB: LTI – fingers lost during mooring operations

The UK Marine Accident Investigation Branch (MAIB) has published Safety Digest 1/2025.

Read more
Hand injuries dealing with sharp objects

A member reports two separate incidents relating to sharp objects.

Read more
BSEE: Failure to identify and restrict access to faulty gratings

The Bureau of Safety and Environmental Enforcement of the United States (BSEE) has published Safety Alert 496.

Read more

IMCA Safety Flashes summarise key safety matters and incidents, allowing lessons to be more easily learnt for the benefit of the entire offshore industry.

The effectiveness of the IMCA Safety Flash system depends on the industry sharing information and so avoiding repeat incidents. Incidents are classified according to IOGP's Life Saving Rules.

All information is anonymised or sanitised, as appropriate, and warnings for graphic content included where possible.

IMCA makes every effort to ensure both the accuracy and reliability of the information shared, but is not be liable for any guidance and/or recommendation and/or statement herein contained.

The information contained in this document does not fulfil or replace any individual's or Member's legal, regulatory or other duties or obligations in respect of their operations. Individuals and Members remain solely responsible for the safe, lawful and proper conduct of their operations.

Share your safety incidents with IMCA online. Sign-up to receive Safety Flashes straight to your email.
