Near-miss: Collapse of ROV launch and recovery system (LARS)

The incident occurred during the demobilisation of an ROV spread. A Lawson type ROV LARS ‘A’ frame was required to be lowered into its stowage position and lifted from the vessel onto the quayside. During this process the ‘A’ frame collapsed.

During the disassembly of the LARS, existing company procedures were not consulted by the ROV team. As a result, an ROV supervisor attempted to lower the ‘A’ frame with his own perceived method, and subsequently the ‘A’ frame fell in an uncontrolled manner to the deck. The method of lowering one supporting hydraulic ram at a time whilst the other is firmly bolted into place was not followed. The supervisor removed all the securing bolts from the feet of both the hydraulic rams, believing the system would gently slide down into the stowage position. To aid the initial movement of the rams, the two supervisors stood on the LARS platform and started striking the feet with a sledge hammer, one ram at a time. Once the first ram moved approx. 13cm, they then struck the second ram which resulted in the ‘A’ frame collapsing at speed. Both supervisors were extremely fortunate that they were not struck by the falling ‘A’ frame -they were unharmed, but this incident had the potential for serious injury/loss of life.

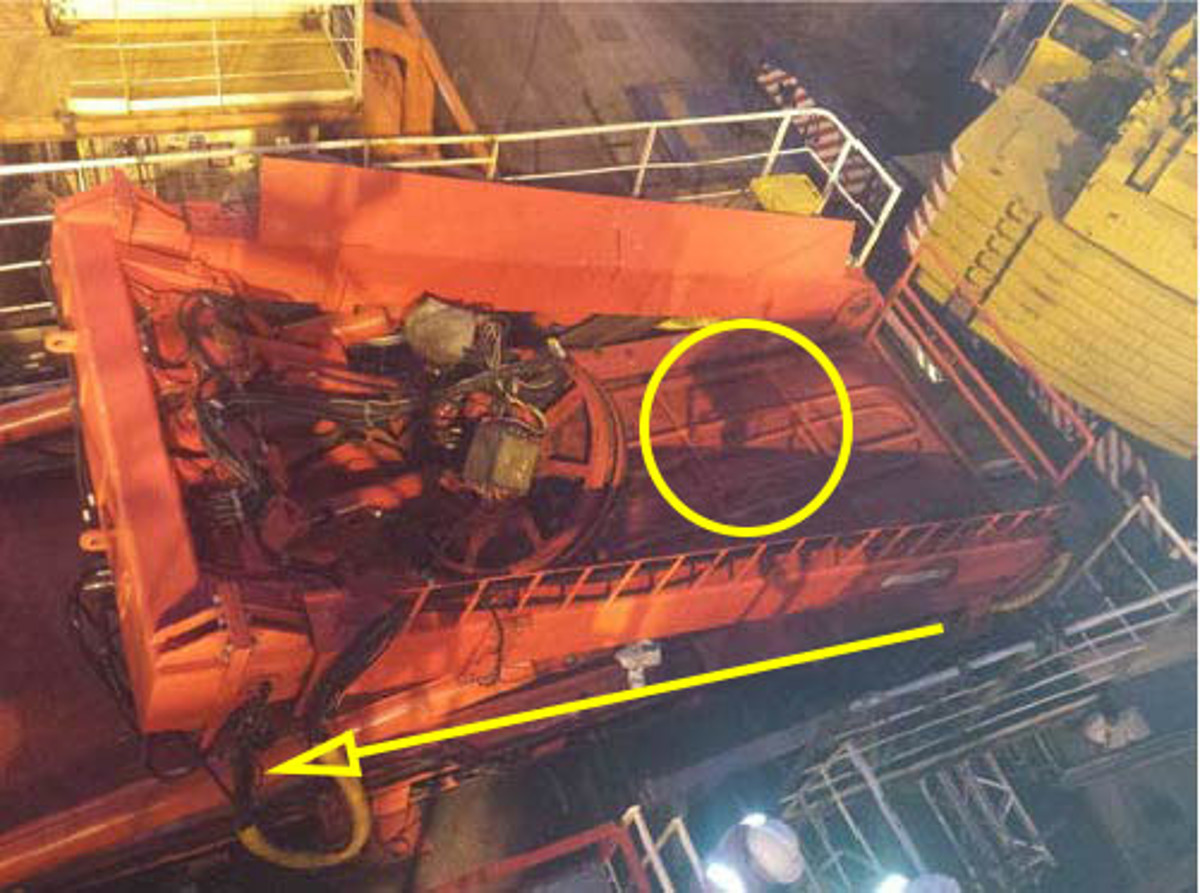

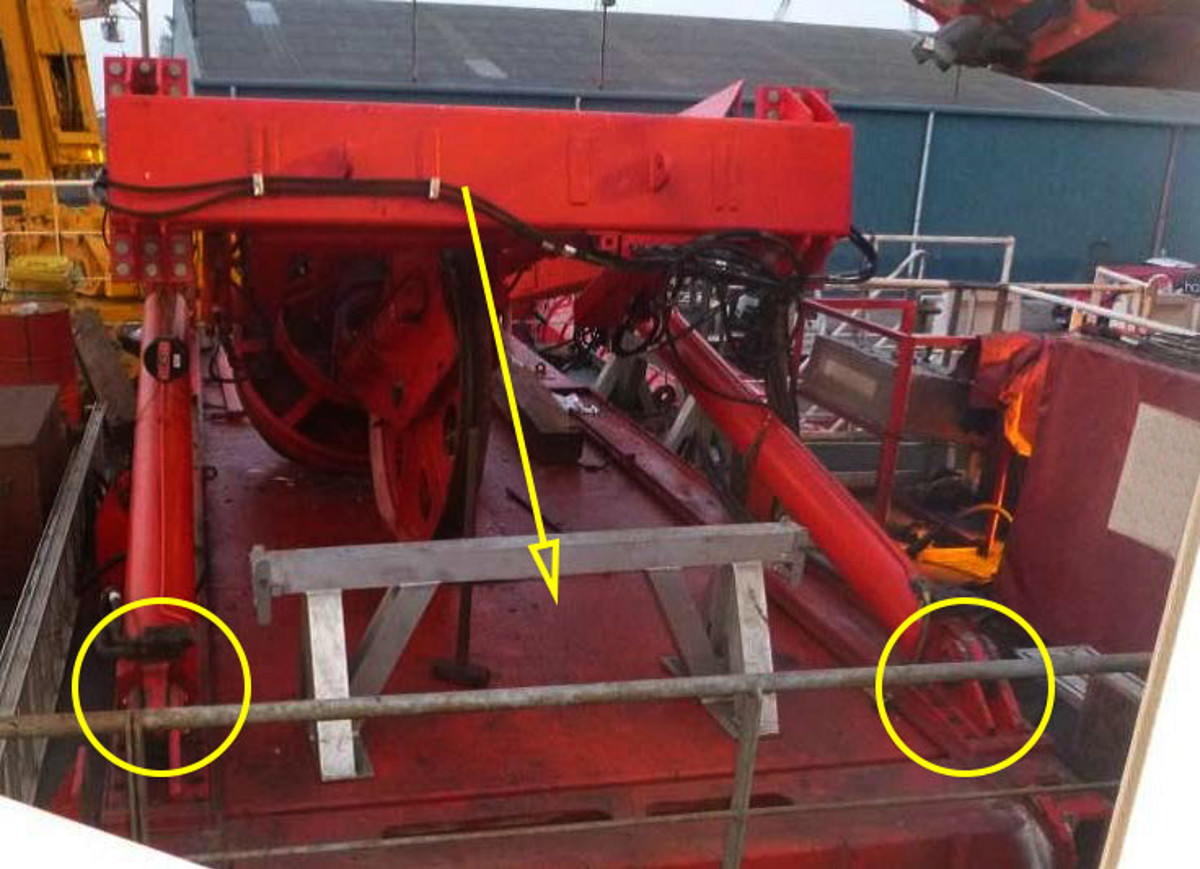

NB: Photographs are of actual worksite after event. Yellow arrow denotes direction in which ‘A’ frame collapsed

• An important opportunity to stop the job was missed – an able seaman not involved in the operation asked the ROV team if they would like the assistance of the vessel crane to support the ‘A’ frame during the lowering process. He explained that he had seen this done before during other demobilisations and the process the ROV team were using did not seem safe. His advice was not taken -If in doubt STOP the job.
• No proper control of work – no toolbox talk, risk assessment, method statement or hazard identification and risk assessment (HIRA).
• Procedures were not followed.
• Poor hazard awareness and poor risk perception of the task.
• Insufficient management and control of the work.
• Poor supervision and poor leadership at the work site.
• Incomplete technical understanding of the equipment.
• Personnel were not competent for the task in hand.

Members can find many incidents in which the immediate and root causes are inadequate control of work, procedures not followed etc. Likewise there are many dropped object incidents, and a number of dissimilar incidents involving ROVs or LARS. It is possible that this incident, in which basic failure to follow common safety procedures led to a serious dropped object near miss involving very heavy equipment, may be without precedent amongst recorded safety flashes.
