Shackle failure during over-boarding of pennant wire and ballast chain

The failure occurred and the damaged chain came off the winch, went across the main deck and over the stern of the vessel. Everyone was in a safe position, and no-one was harmed, but there was damage to other nearby winch equipment.

110 m of chain were lost overboard; our Member calculated that this meant there was approximately 31.7t (submerged weight) of tension on the chain at the time of the incident.

• Evidence suggested that during the over-boarding of the chain, the nut on the shackle pin became lodged behind the stud piece of the chain link whilst wrapped on the winch drum.


• When tension was applied on this section of the chain the links straightened and caused the nut of the shackle to be forced off along with the stud piece.


• The resultant shock may have then forced the pin out of the shackle and allowed the chain to part.


• At the point of shackle failure, the chain on the winch drum become loose and whipped towards the special handing winch causing multiple impact damage to surrounding equipment.

Immediate causes

• Connection of different chain link sections using shackles and spooling them off the stern of the vessel for wet storage.


• The decision to wet store the ballast chain was made onboard and not covered in the original project planning or HIRA.

Underlying causes

• No inspection certificates available for the 82mm chain.


• Poor maintenance of the 82mm chain due to the fact it was only to be used as ballast weight in single 27.5m sections.


• Kenter joining links were not used to connect the section of 82mm chain together, they were ordered but did not arrive.


• Internal signed management of change documentation was missing some important detail regarding the actual connection of the individual chains to be wet stored.


• The chain was connected with 35t shackles which have multiple edges that can be caught or trapped inside other equipment, especially the nuts.

Our Member concluded that that the assessment of risk of connecting the chains using the shackles was overlooked mainly due to last minute change in the engineering planning of this scope of the project (IMCA italics).

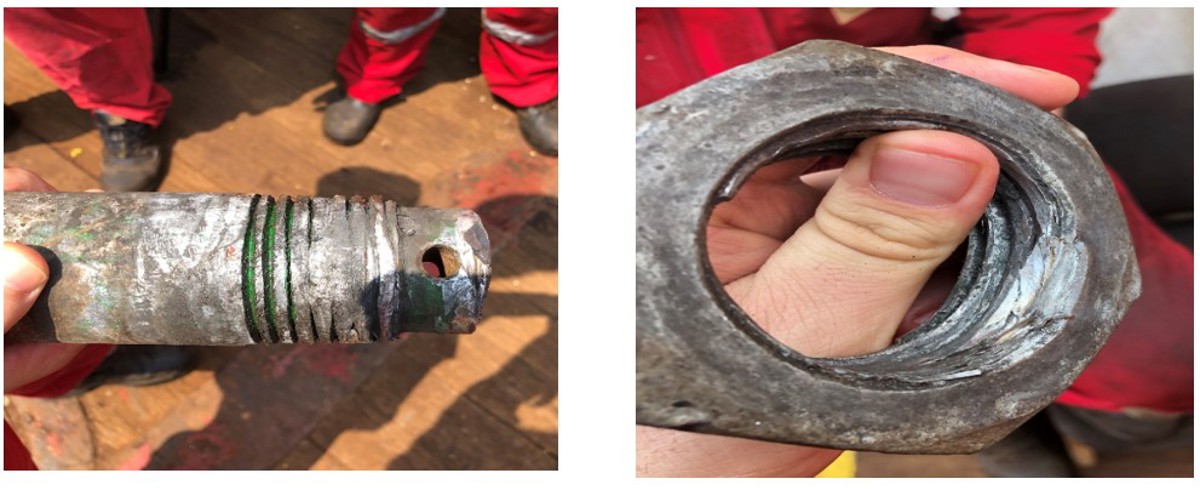

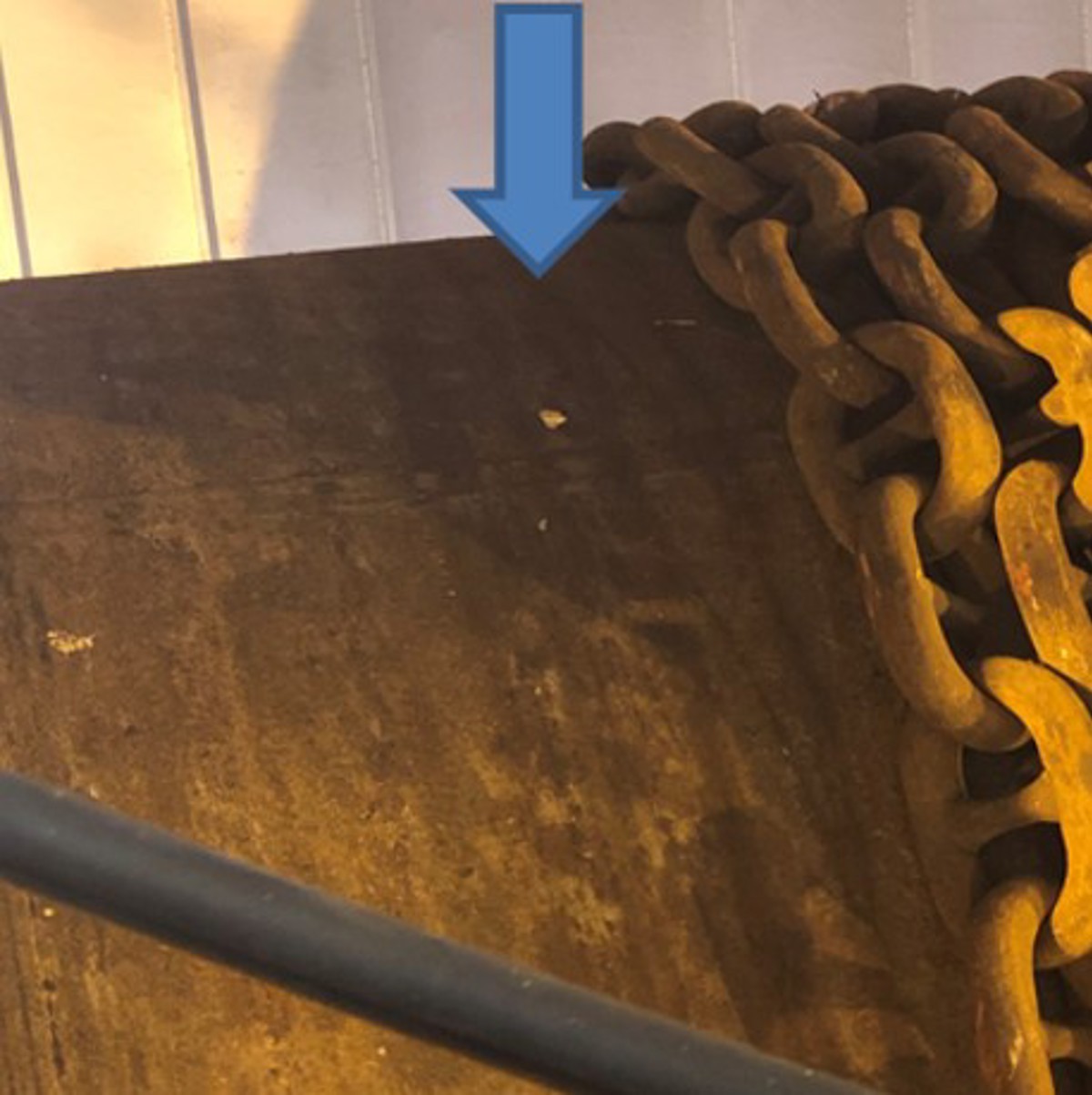

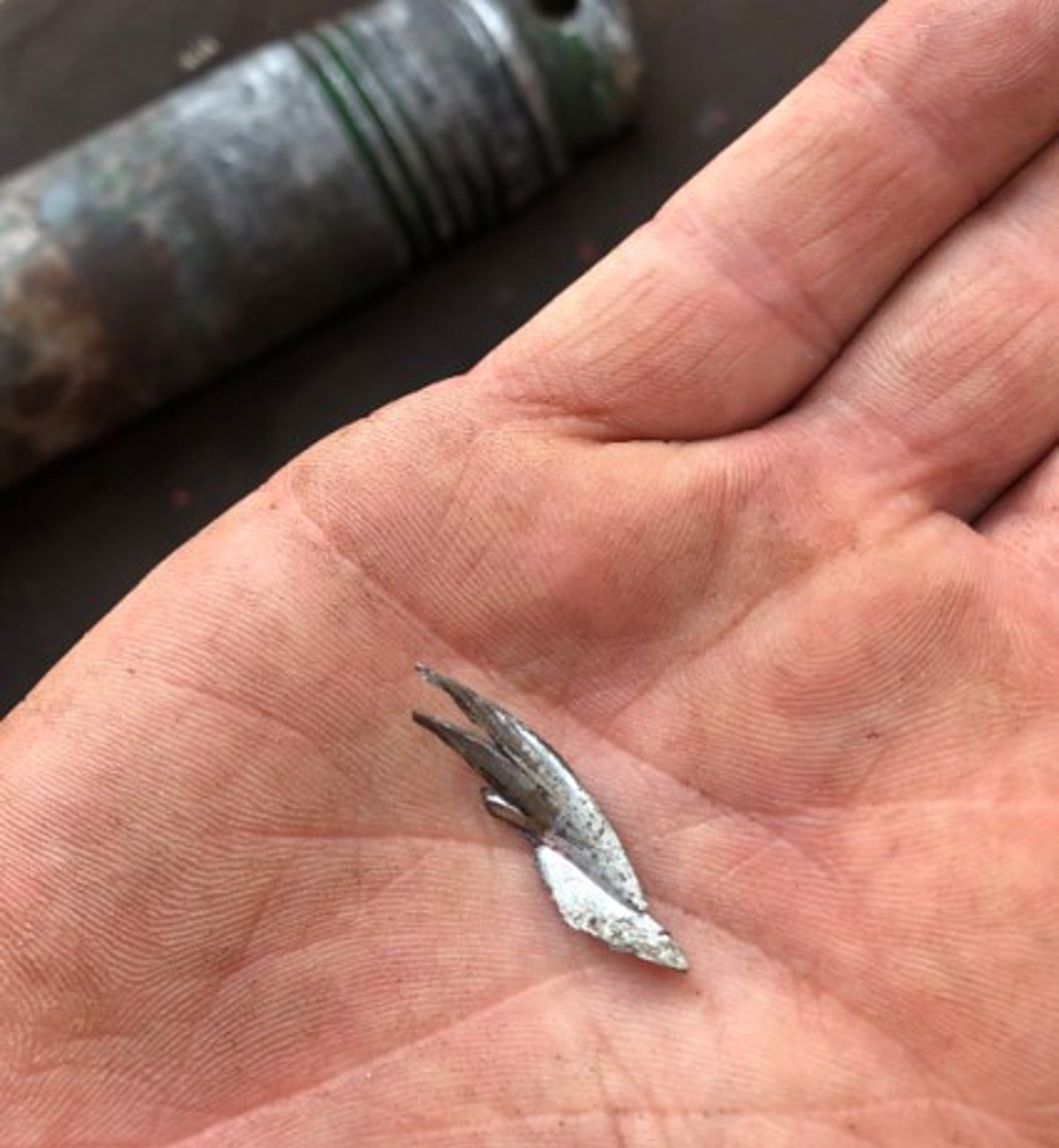

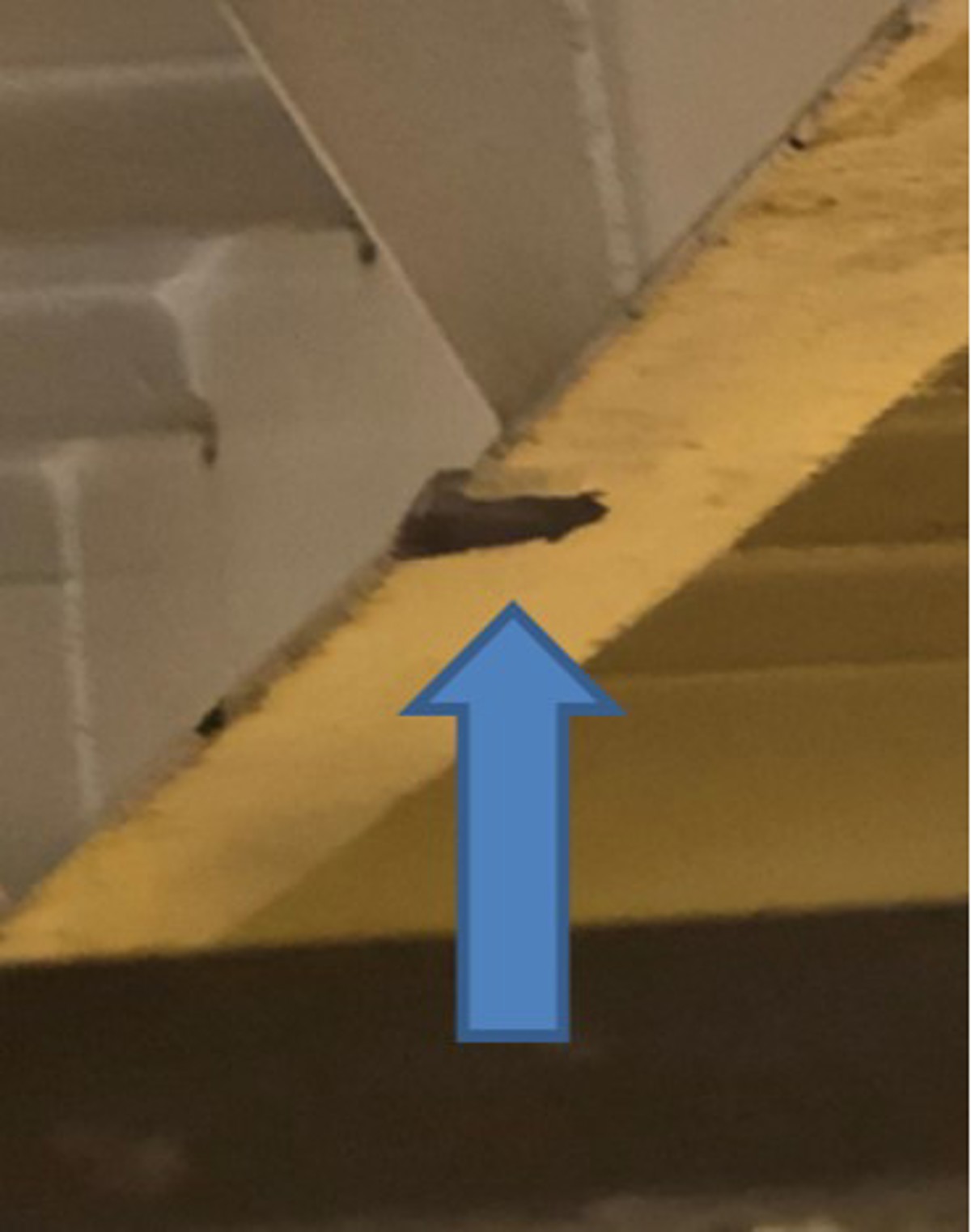

Pictures of damaged shackle nut and pin – shackle nut located STB side of winch
near walkway and shackle pin found at the back of the winch.
(Clear indication the shackle was side loaded.)
