Bow thruster tripped due to lack of power
- DP Event
- Published on 13 September 2016
- Generated on 9 May 2025
- DPE 03/16
- 1 minute read
Undesired event
The seat for the stop solenoid on the engine was damaged causing a slight air leak causing a reduction in main engine rpm.
Comments

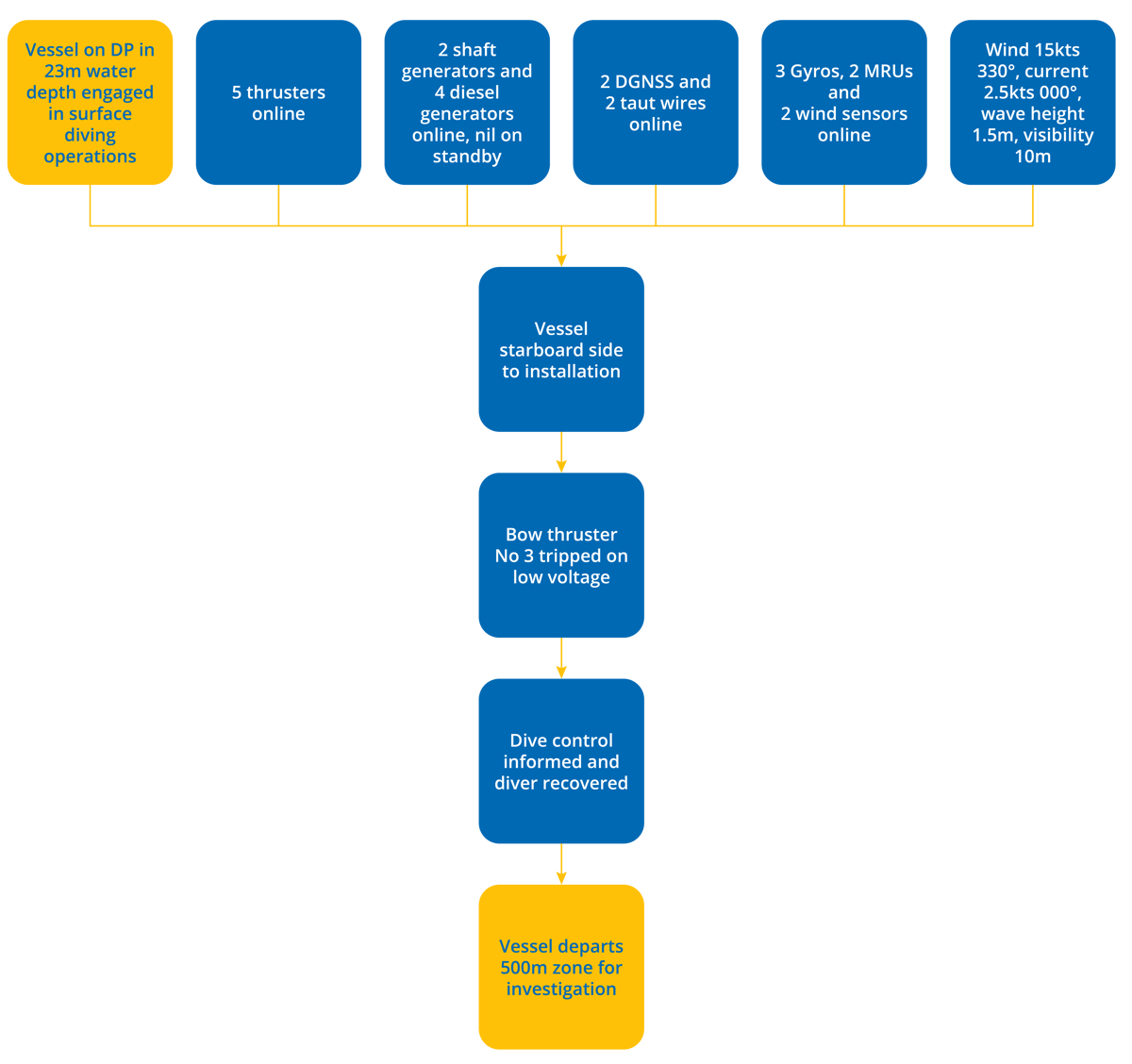

The seat for the stop solenoid on the port main engine was damaged causing a slight air leak past it, this acting on the stop cylinder piston caused a reduction in main engine rpm. The reduction in rpm caused a low voltage alarm followed by breaker trip and low frequency alarm. Power was lost to bow thruster No.3 due to a breaker trip on the switchboard, the port azimuth thruster was not affected as the clutch out rpm was not reached.
The vessel has reduced the inspection interval of the stop solenoid valves from annual to six months.
Considerations
The vessel did not appear to reach its worst case failure (WCF) and although DP redundancy was effective precautionary measures were initiated.
