Temporary connection to DP system caused short circuit

  • DP Event
  • Published on 2 November 2017
  • Generated on 14 September 2026
  • DPE 04/17
  • 2 minute read

Undesired event

Connection of any temporary system should be part of a change management plan and risk assessed.

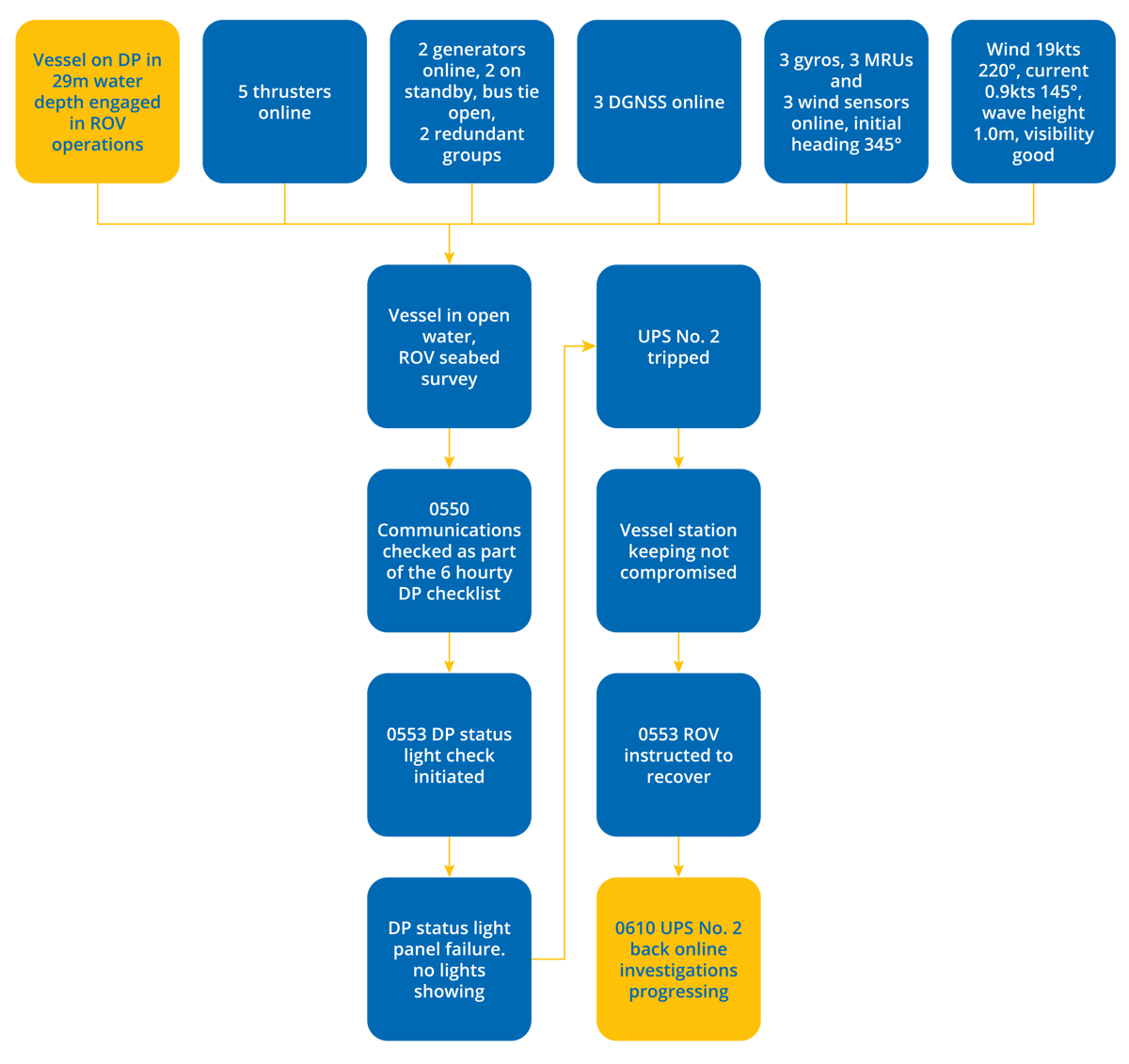

DPE 17.04 – Temporary connection to DP system caused short circuit – DP Undesired Event – Flowchart

Comments

  • Various DP equipment, including the DP status lights, were connected via UPS No.2. Investigation found that the UPS tripped because of a break in the portable cable supplying the DP status lights to ROV control.

    • The vessel does not have a permanent ROV system, when an ROV system is mobilised it is a requirement that the ROV control has DP status lights. This is achieved by installing a portable set of lights that are connected to the vessel’s DP system by a cable.
    • The same cable had been in use for several years whenever an ROV system was mobilised.
    • Inspection procedures have been modified to include portable wiring and a bend preventer/limiter used for future connections.

Considerations

  • Connection of ANY temporary system to a DP system should be as part of a formal management of change and properly risk assessed.
  • The connection of ANY temporary system should be designed to tolerate a short circuit or any other failure.
  • Additional systems that are connected to a DP system should be approved by manufacturer and class and should be extensively tested.
  • The vessel is recorded as operating within DP equipment class 2, however only satellite derived position reference systems were recorded as being in use.
