LTI: Worker lost his thumb

  • Safety Flash
  • Published on 28 April 2020
  • Generated on 18 November 2026
  • IMCA SF 14/20
  • 2 minute read

During drilling operations, a worker got his thumb caught under a part of a drill being lowered into position, resulting in the amputation of the thumb just above the knuckle

What happened?

The incident occurred during operations to retrieve core samples from the borehole. Our member notes that an Inner Barrel is deployed by freefall to latch into the Bottom Hole Assembly (BHA) of the drill string. The Inner Barrel was lifted into position by winch, attached to the Overshot, and lowered into the casing, ready to be deployed.

On this occasion, whilst deploying (de-latching) the Inner Barrel from the Overshot the assistant driller positioned his hands as shown in the photograph to depress the latch release keys.

As the Inner Barrel dropped under its own weight his left thumb was caught between the latching ring and the top of the casing resulting in the amputation of the thumb just above the knuckle.

The IP was taken to the nearest hospital. The medical team was unable to save the tip of his thumb.

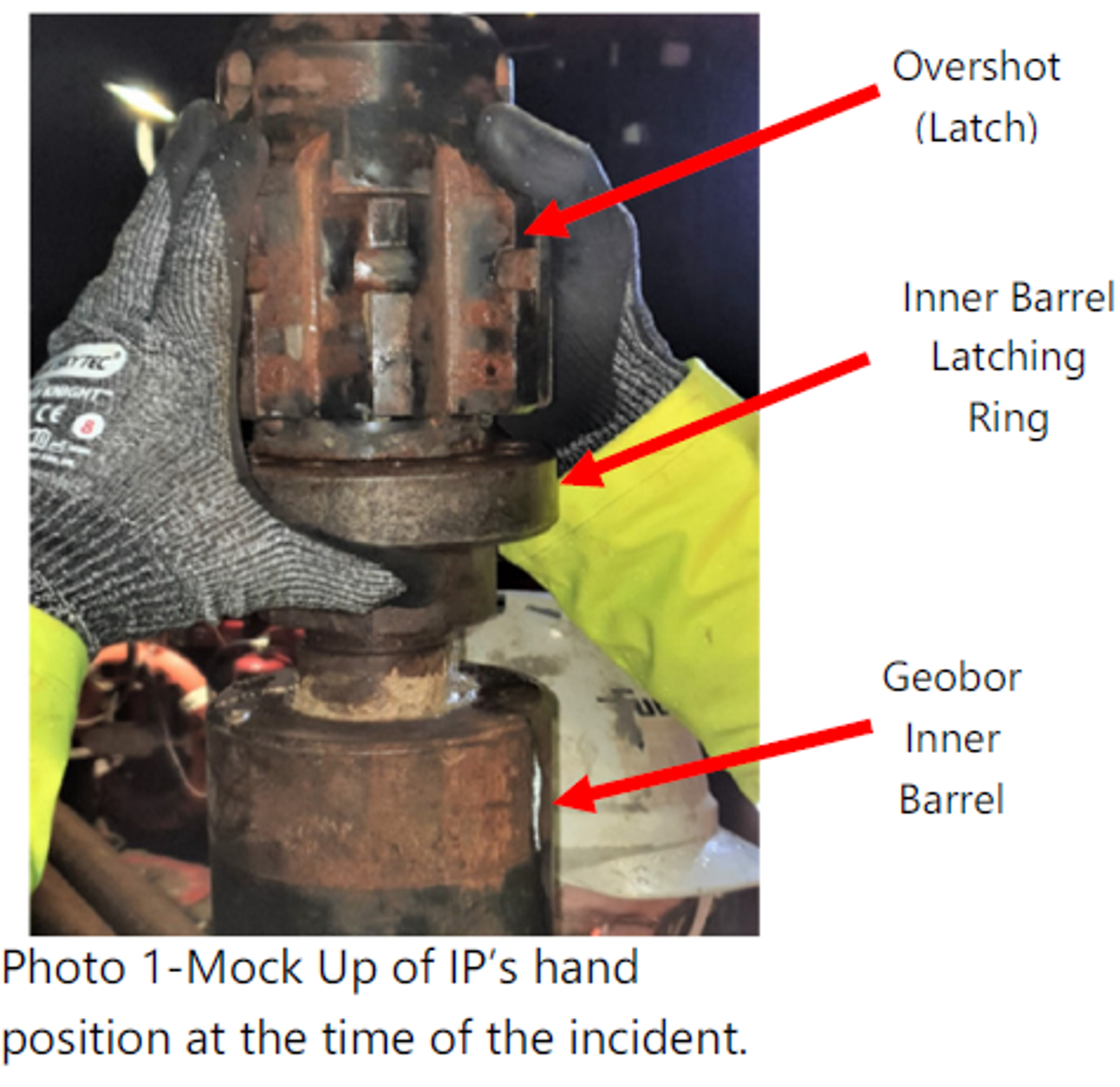

Mock up of IP''s hand position at time of the incident

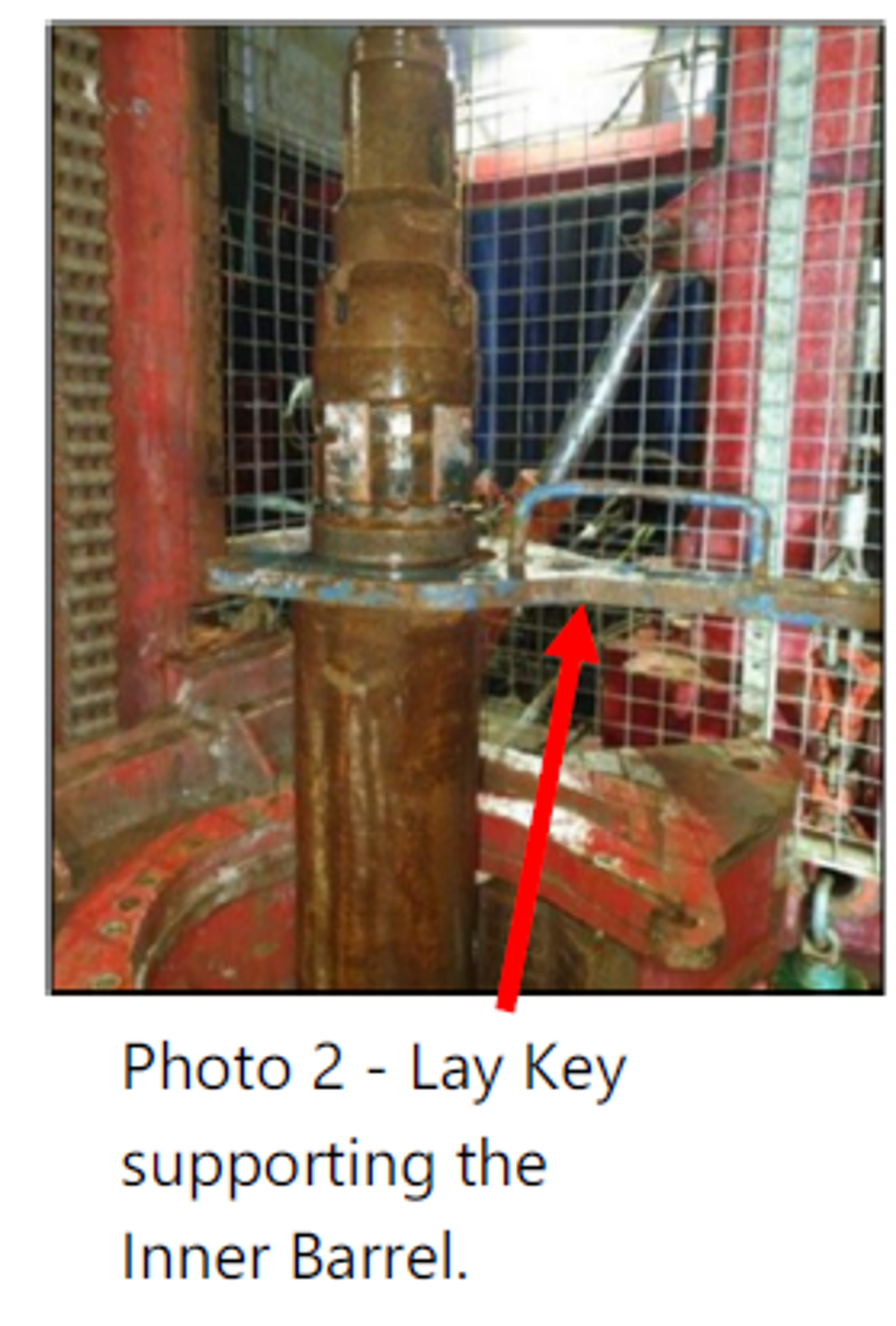

Lay key supporting the inner barrel

What went wrong?

  • Bypassing safety controls: the injured person failed to understand or use safety-critical equipment or follow procedures applicable to this task.
  • ‘Line of Fire’: the injured person got in the way of falling/moving objects.

What actions were taken?

  • Full review of all aspects of this task including revision of task work instruction and method statement.
  • Drill crews have been reminded to use the appropriate Lay Key intended for this task.
