Ruptured hydraulic hoses
- Safety Flash
- Published on 3 October 2014
- Generated on 13 December 2024
- IMCA SF 16/14
- 2 minute read
A member has reported an incident involving the rupturing of a pair of hydraulic hoses on a vessel crane.
What happened?
A hydraulic hose ruptured and oil was spilt to the main deck below. The majority of the hydraulic oil (20 litres) landed on the deck but approximately 500 ml of oil went into the sea.
An ‘all stop’ was initiated and the spill on deck was immediately cleared up using a Ship Oil Pollution Emergency Plan (SOPEP) kit. The following day another hose ruptured in a similar location and all oil was contained on deck. The relevant authorities were notified.

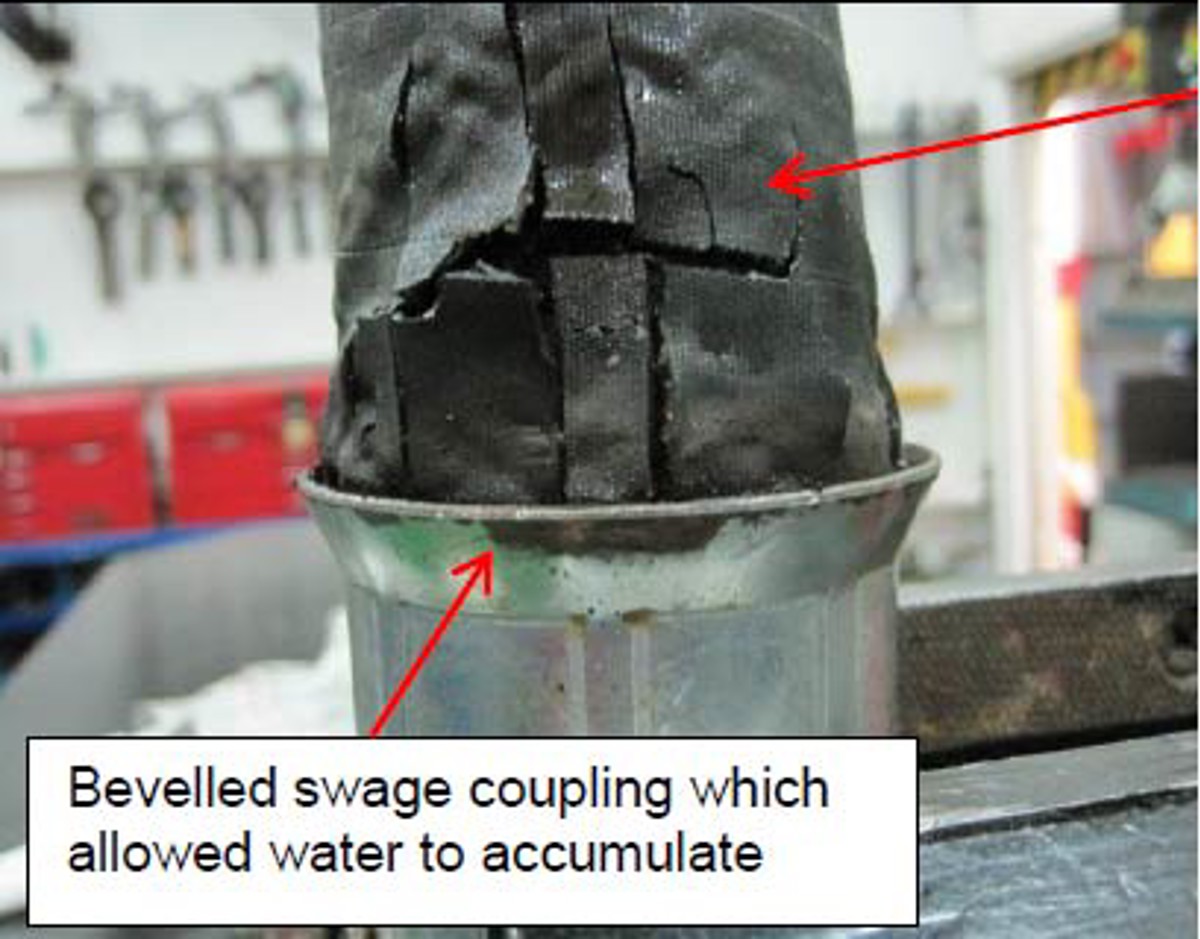

Damaged hose (upper red arrow indicates ruptured area)

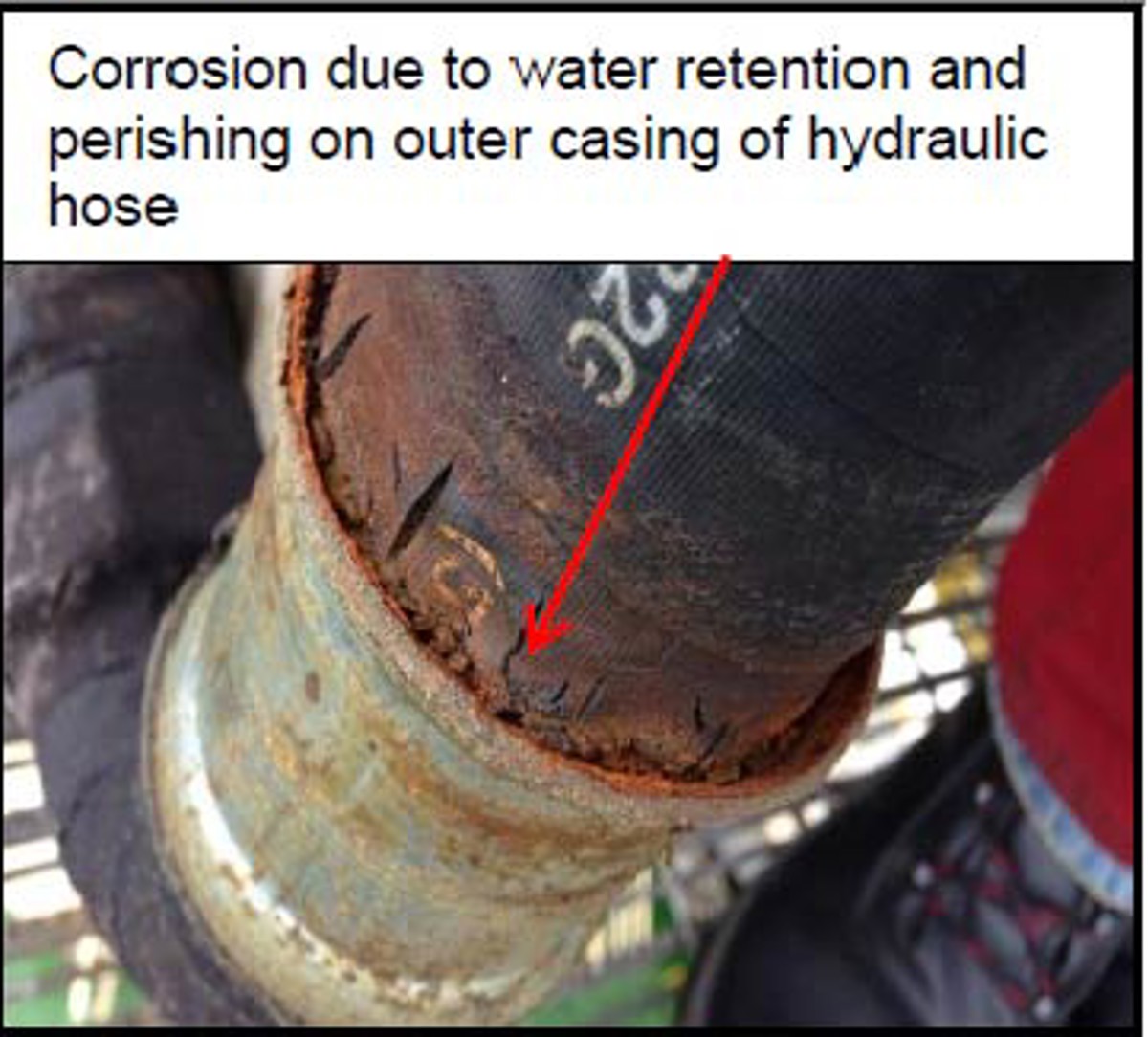

Damaged hose
Our member’s investigation revealed the following:
- The ruptured hoses were badly corroded.
- The design or assembly of the hydraulic fittings had allowed water to accumulate around the neck of the fittings.
- The collection of water had eroded parts of the hoses resulting in the ruptures.
- Other hoses onboard were found to be in a similar state.
- The inspection of the vessel crane hydraulic hoses was conducted by vessel crew and a third-party contractor. The most recent inspection had taken place four months previous to the incidents occurring. It was found the crew and the third party inspection team had not removed the ‘denso’ tape wrapped around the hose fittings, thus the corrosion was not visible.
- It was apparent that the corrosion on the hoses had occurred over a long period of time and this should have been spotted by the inspection by vessel crew and contractor, and noted in their report.
Our member took the following actions:
Our member immediately replaced the badly corroded hoses and undertook an investigation to ascertain why the contractor and crew had not identified the corrosion during the previous inspection. It was found the ‘denso’ tape was not removed from hose fittings during these inspections and as a result the corrosion was not visible. Removal of ‘denso’ tape from hose fittings is now required for all future inspections.
