A member reported an incident which there was an explosion of a lithium battery pack that was supplying power to a corrosion erosion monitor, a non-intrusive method of monitoring wall thickness of pipelines.
What happened?
The incident occurred during installation of a 10″ in-field flow line.
As this was the first such device to be installed by the client, there were a number of individuals taking pictures. As a result, there are pictures showing the battery explosion as it happened.
Four persons required medical treatment with one person requiring a number of stiches to the forehead as a result of flying debris. There was significant damage to the surrounding steel work of the Pipe Line End Termination (PLET), and subsequent installation delays while the remaining battery units were made safe and replaced with NiCd type systems.
A formal investigation was on-going, but initial observations were as follows:
- The lithium battery pack exploded. There were no other energy sources in the area.
- The battery pack was thought to contain around 60 cells. A number of the cells were located in the debris field and were undamaged. The explosion was thought to be as a result of only one or two battery cells failing.
- Early indications are that the battery pack overheated triggering a chemical reaction resulting in an explosion. The cause for the overheating is not yet understood although all preservation requirements are thought to have been adhered to i.e. external temperature constraints.
- The manufacturer of the corrosion erosion monitor was informed, and the manufacturer took steps to find out what had happened, and to ensure that the incident could not recur.

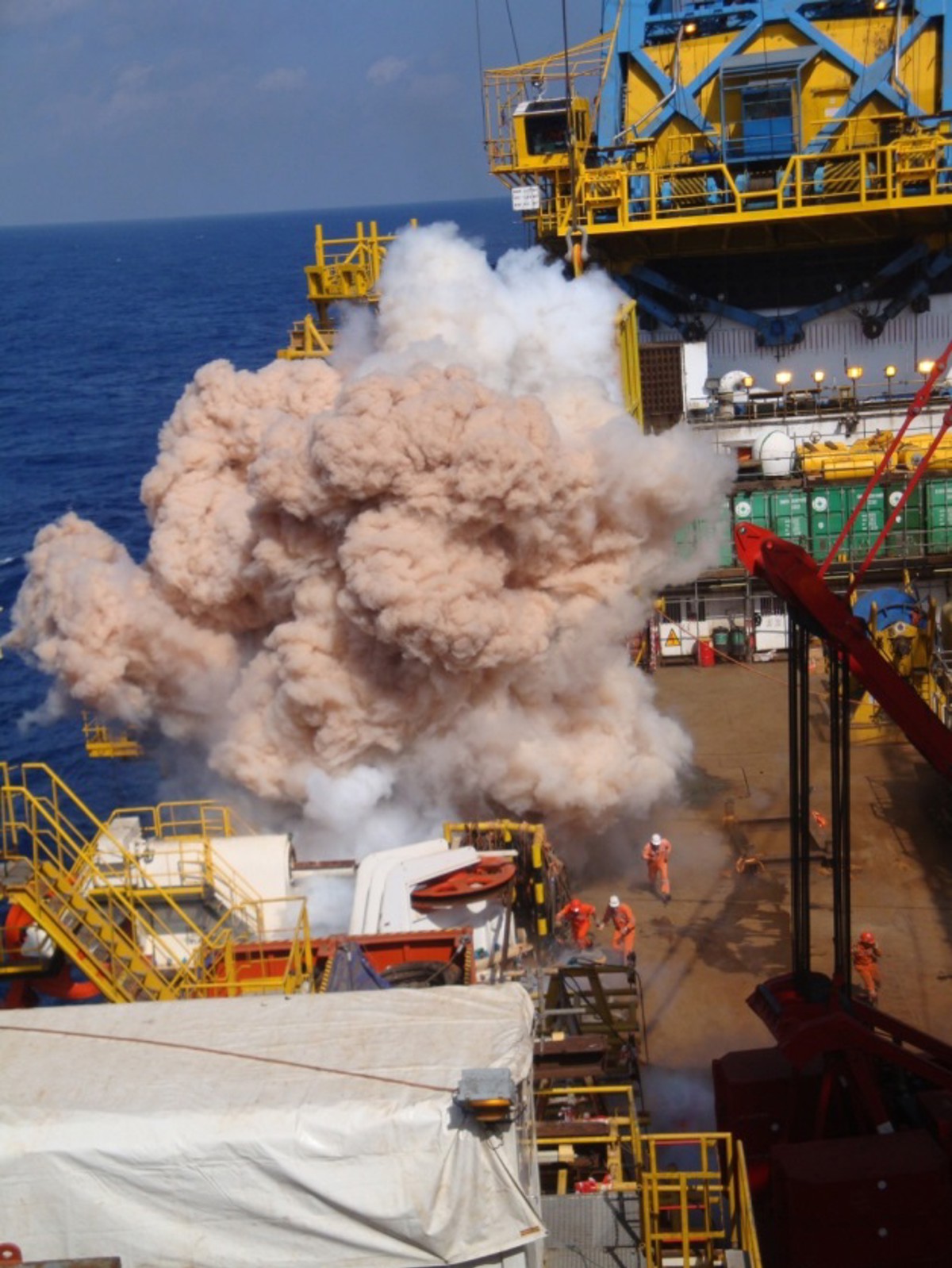

Lithium battery explosion as it occurred

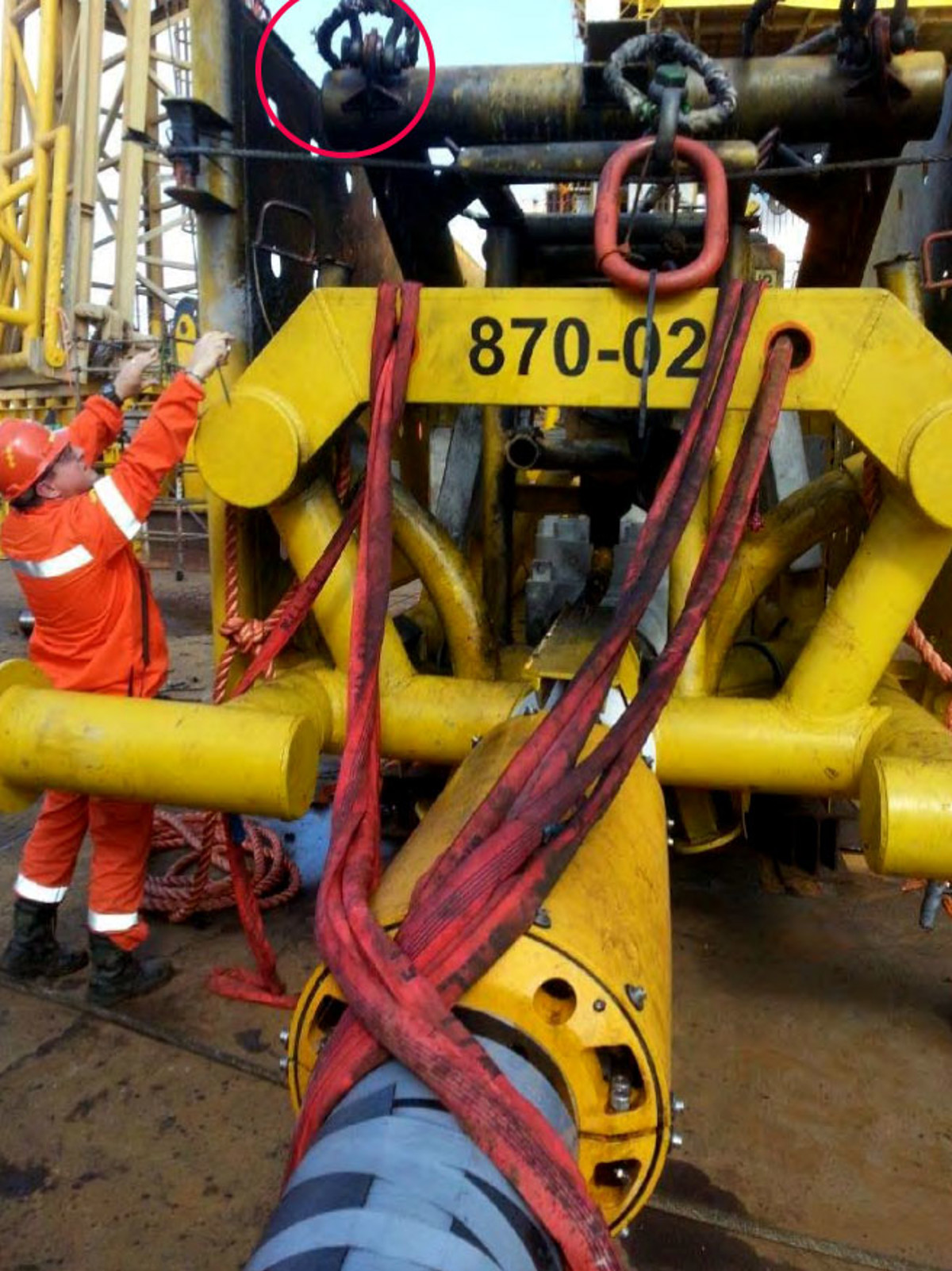

Damaged pipeline end termination (PLET) after the explosion (note blackened areas in red circle, and CEM sensor array in foreground)
Damage to helmet hit by flying debris from what is believed to be part of an ROV hatch close to the battery unit. The helmet and the person wearing it were 20m away from the area when the explosion happened

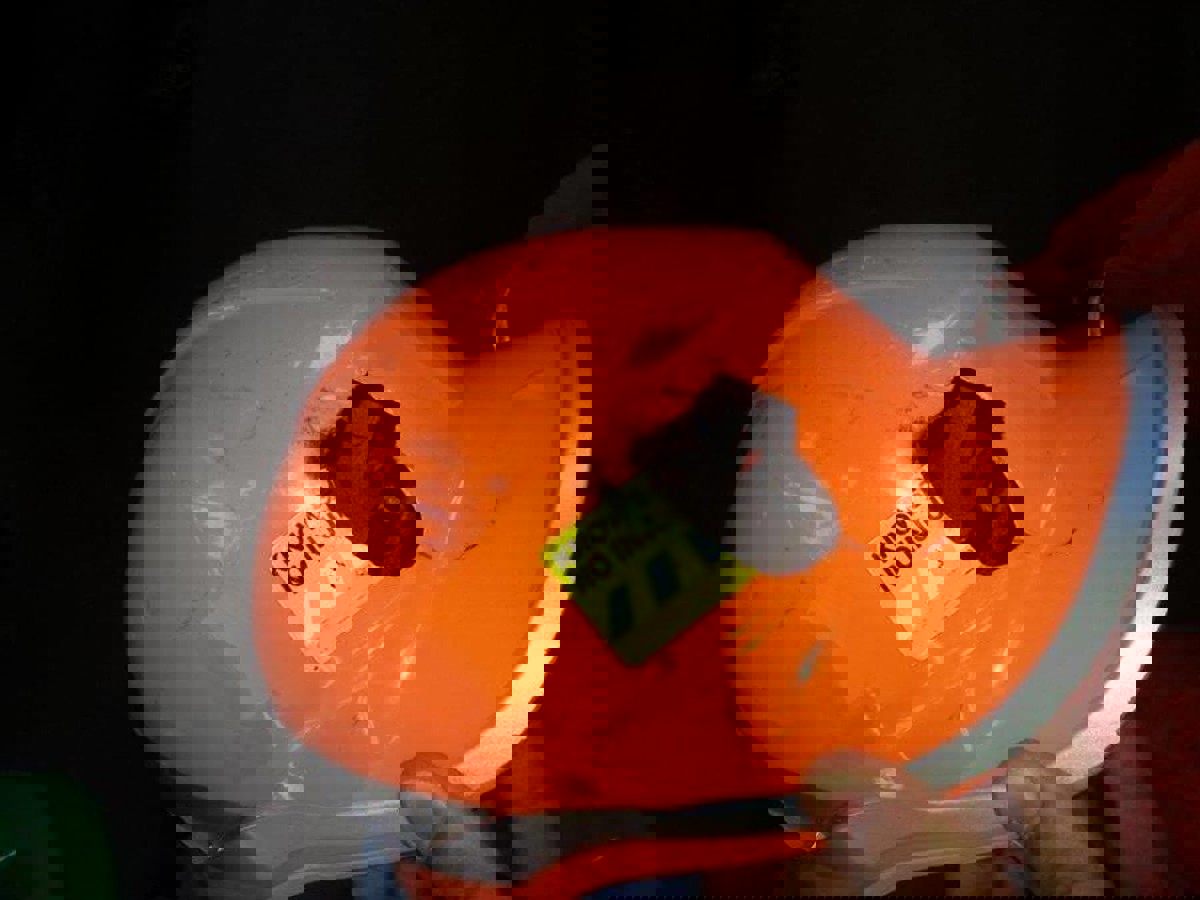

Damage to helmet
There have been a number of incidents involving explosions and fires of Lithium battery packs where the root cause was discerned to be the way in which batteries were managed. The incidents below also involved Lithium-based batteries, which are potentially more hazardous than other commonly used types.
