Pipe under tension on a reel
- Safety Flash
- Published on 16 February 2007
- Generated on 10 December 2025
- IMCA SF 01/07
- 1 minute read
A Member has relayed a report of an incident involving a reel containing pipe under tension at a third party’s onshore facility.
What happened?
An employee, unaware that the pipe was under tension, removed the ratchet strap securing the pipe on the reel. When the tension was released, the pipe sprang out and struck the employee above the left eye, causing a wound which required subsequent medical treatment.
There was a caution label warning that the pipe was under tension. However, this was on the flange of the reel and not clearly visible.
Photographs relating to this incident are shown below (swipe for more).

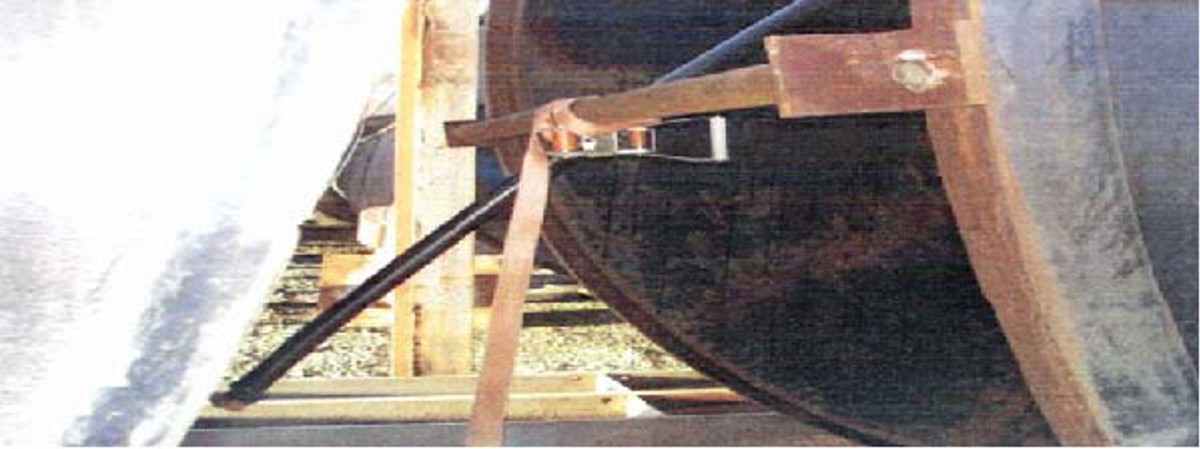

how the pipe was secured on the reel using a ratchet strap

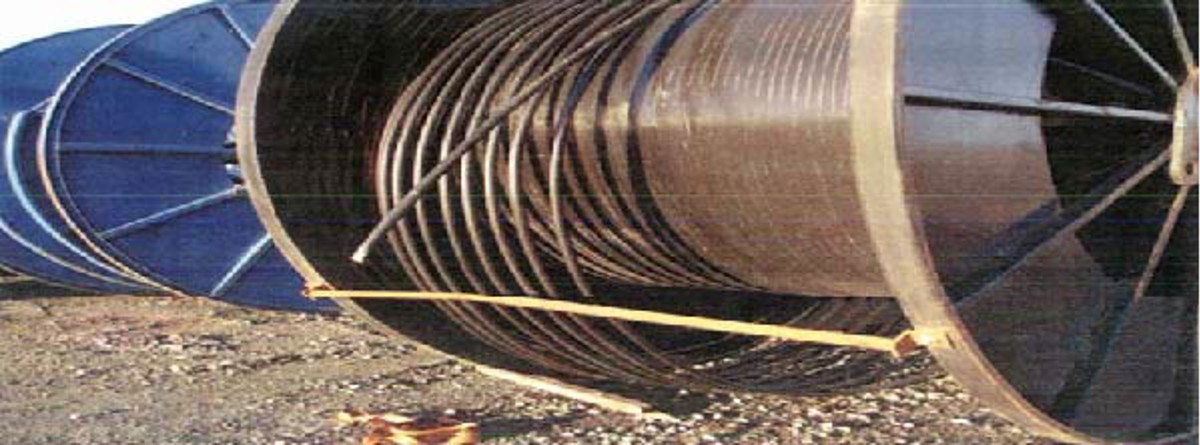

the unwound reel after the ratchet strap was removed and the stored energy released

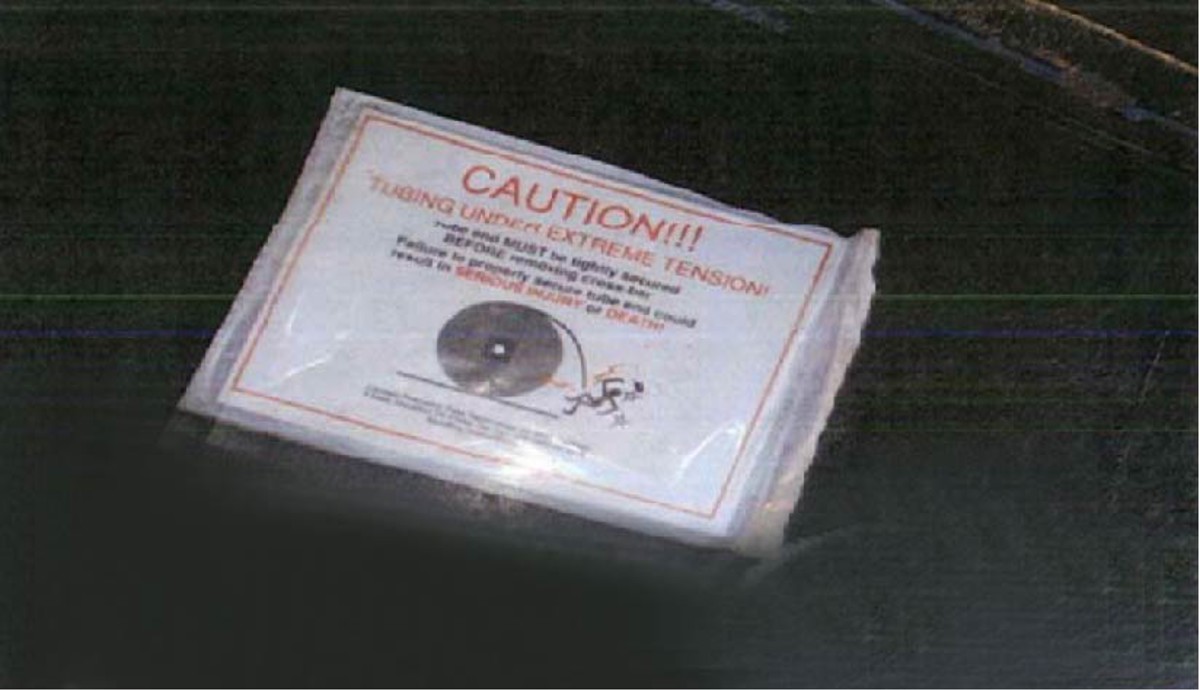

the warning label that was on the flange of the reel
Actions
The following actions were recommended:
- Tensioned pipes should be tied off/secured using either a mechanical ‘U’ clamp or pipe clamp with a ratchet strap (or rigging) being used as a back up.
- Any warning signs should be attached to the pipe end or near the securing mechanism such that they are clearly visible to all personnel who will be handling the reel and pipe.
