Explosion of hose-ball valve assembly
- Safety Flash
- Published on 1 April 2002
- Generated on 30 June 2025
- IMCA SF 03/02
- 2 minute read
A Member has reported the following incident, which occurred during an onshore drilling operation.
What happened?
During the operation (run in hole) with a 4½” liner, the crew was instructed to fill up the casing every five joints. To fulfil this task they were using a centrifugal pump. The centrifugal pump and mid pump were controlled by a common device, operated from the driller’s console. During the operation, the driller was in position at the brake and was controlling the SPM and the pressure on the line. The floorman was in charge of the hose filling.

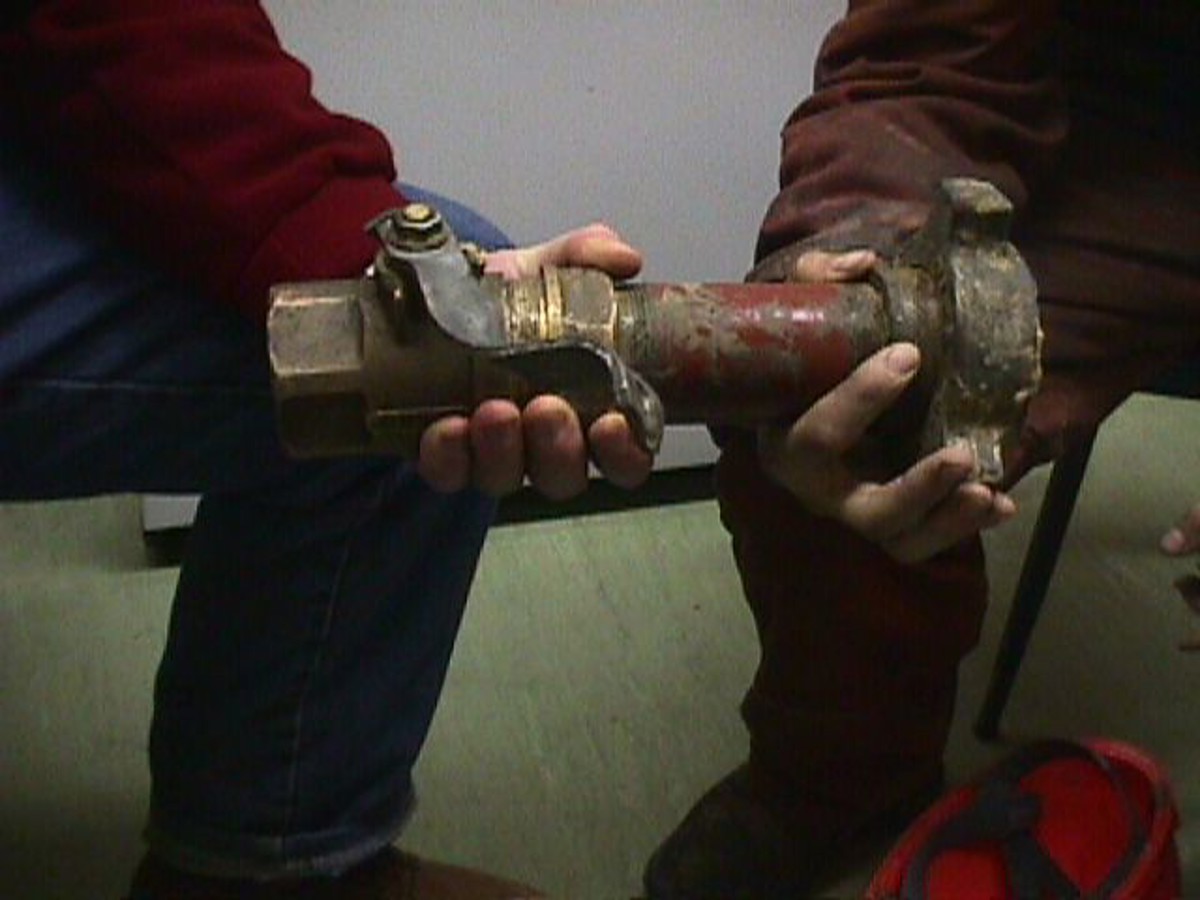

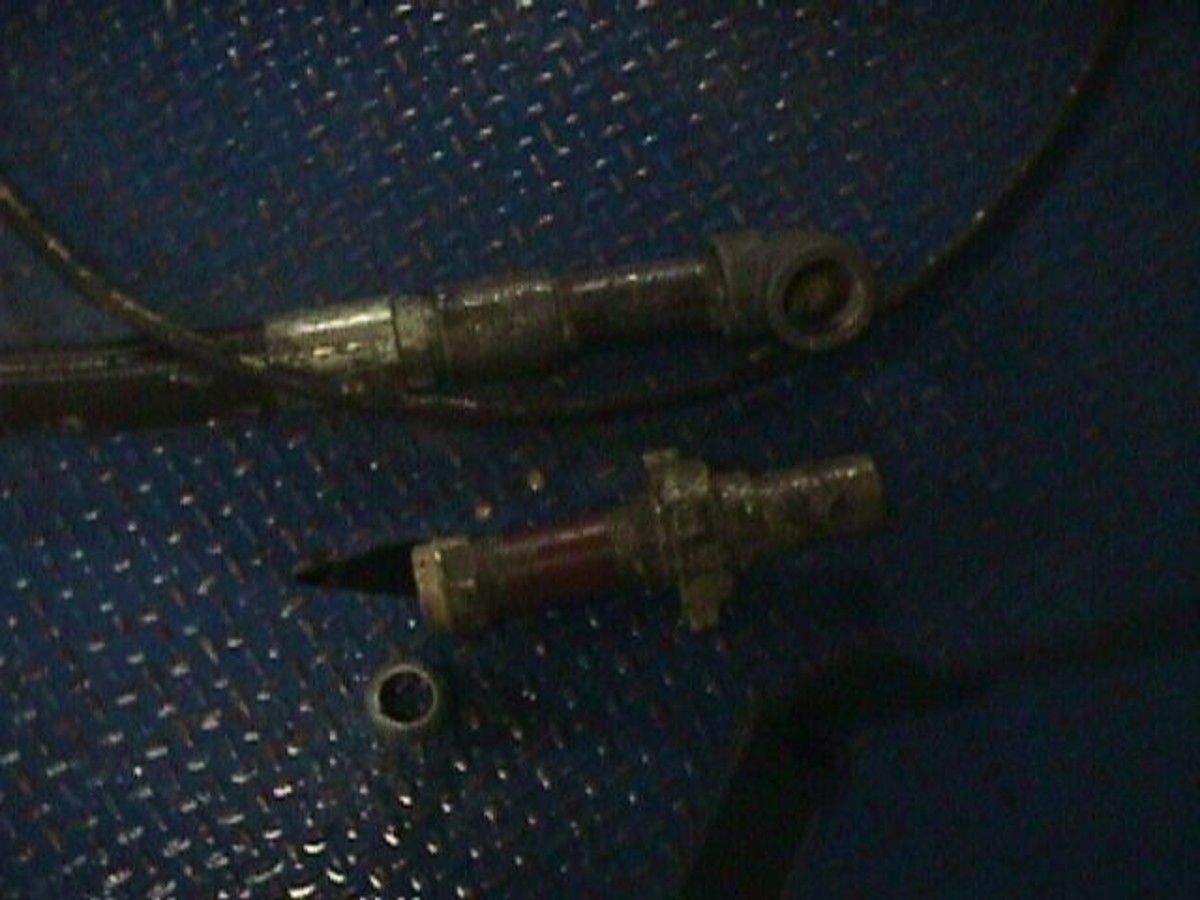

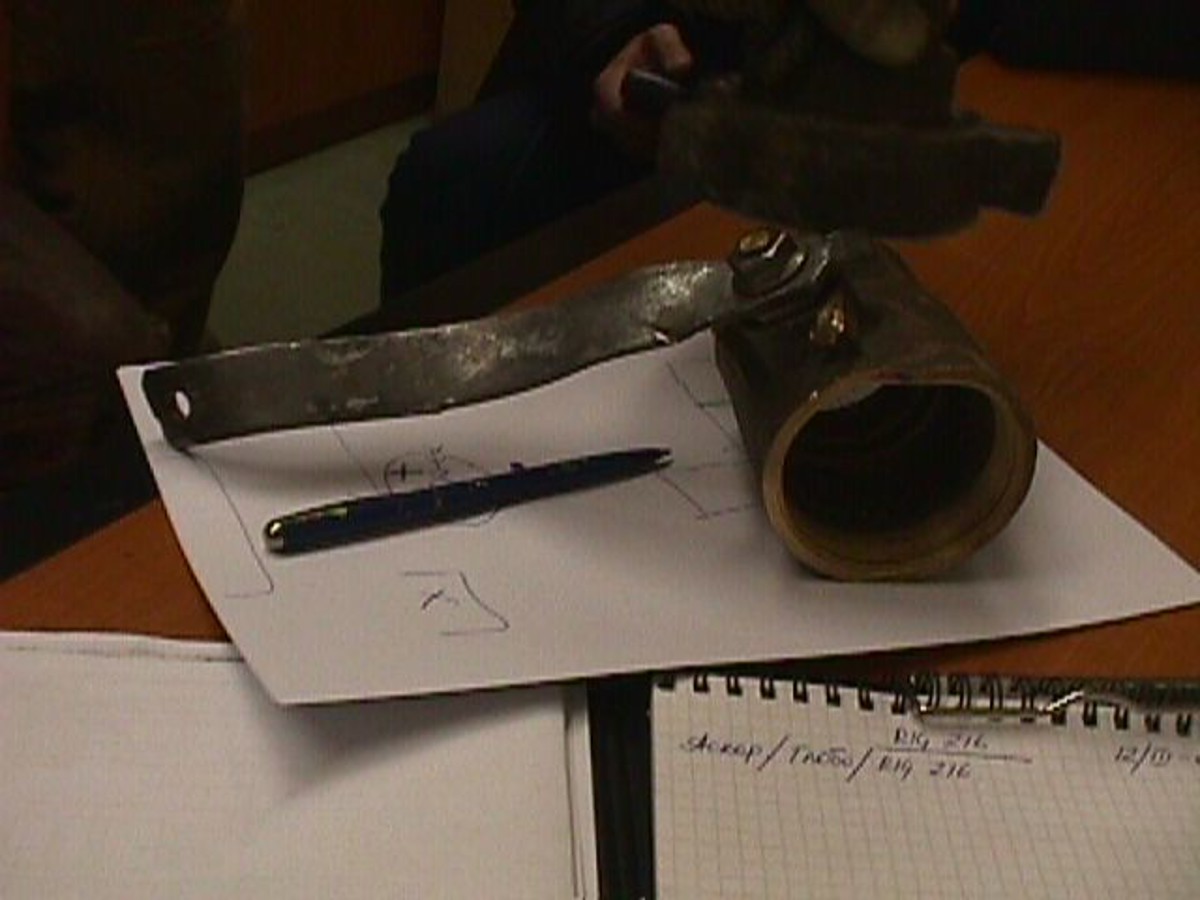

When the operation was completed, the floorman closed the ball valve and asked the roustabout to help him and pick up the filling hose. At that moment, the mud pump activation increased the hose pressure and the ball valve and hose blew, causing an injury to the right hand of the roustabout. The roustabout was visited and the doctor confirmed strong contusion from the elbow to the fingers of his right arm.
What were the causes?
The accident investigation pointed out that:
- the filling hose was not a heavy pressure type.

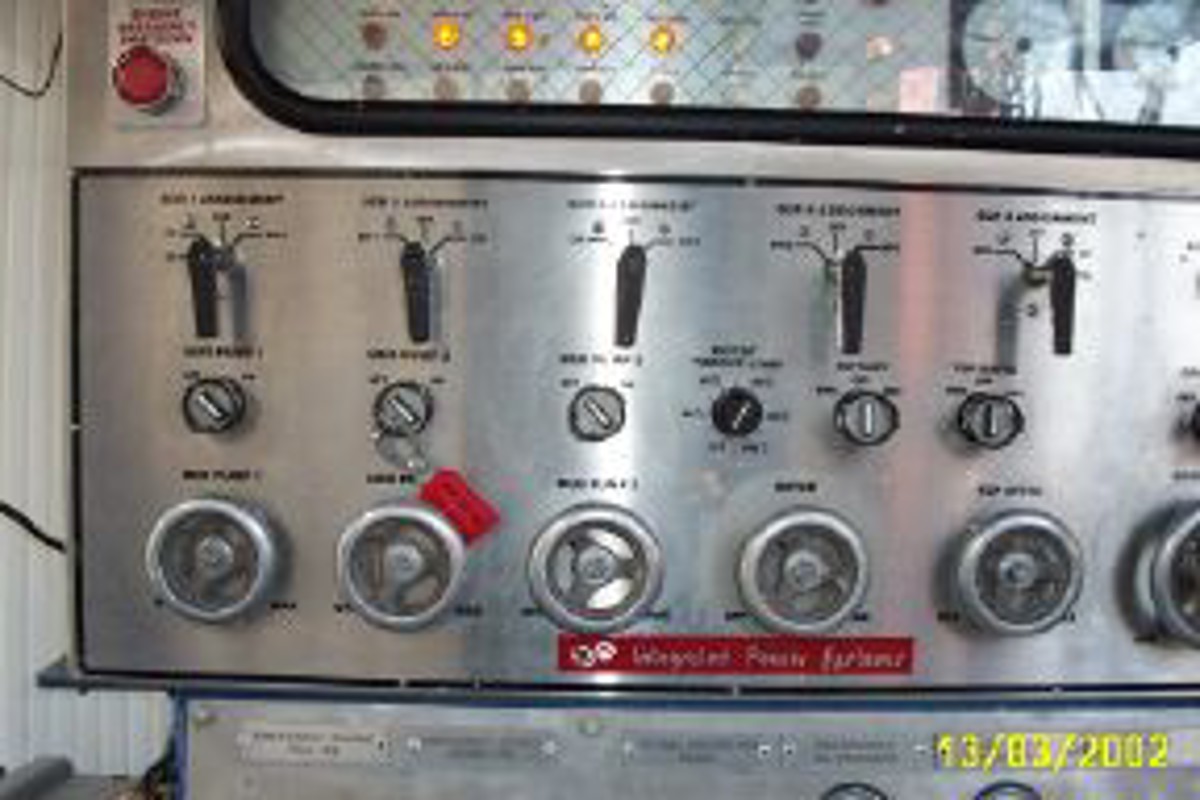

- the centrifugal pump and mud pump were controlled from the driller’s console by the same device (see photo). This system is to be changed to eliminate the reoccurrence.
- there was no relief valve in the circuit.
- the roustabout hadn’t received the appropriate training to carry out duties on the rig floor.
Actions
The Member concerned instigated the following corrective action:
- Toolbox meetings and JSA to be implemented and developed in order to ensure proper planning.
- A relief valve will be installed, over pressure shall be safely released and a new control for pumps operating separately from the driller’s console will be installed.
- Ensuring roustabouts will not operate on the rig floor without prior suitable training.
