Failure of fire extinguishers owing to corrosion

  • Safety Flash
  • Published on 6 May 2016
  • Generated on 20 February 2026
  • IMCA SF 12/16
  • 1 minute read

A member has reported a near miss incident in which a fire extinguisher failed due to corrosion of the internal stem.

What happened?

The failure was discovered during inspections of fire extinguishers during a mobilisation. Corrosion had taken place where the brass fitting connected to the aluminium stem. The extinguisher was relatively new and this was its first inspection. On removal of the pillar valve, the technician noticed an unusual amount of corrosion around the internal female brass fitting connecting the aluminium stem to the internal male thread of the pillar valve. The technician touched the stem and it fell apart at the corroded area. The internal inspection of the cylinder found that it was in good condition with no signs of corrosion.

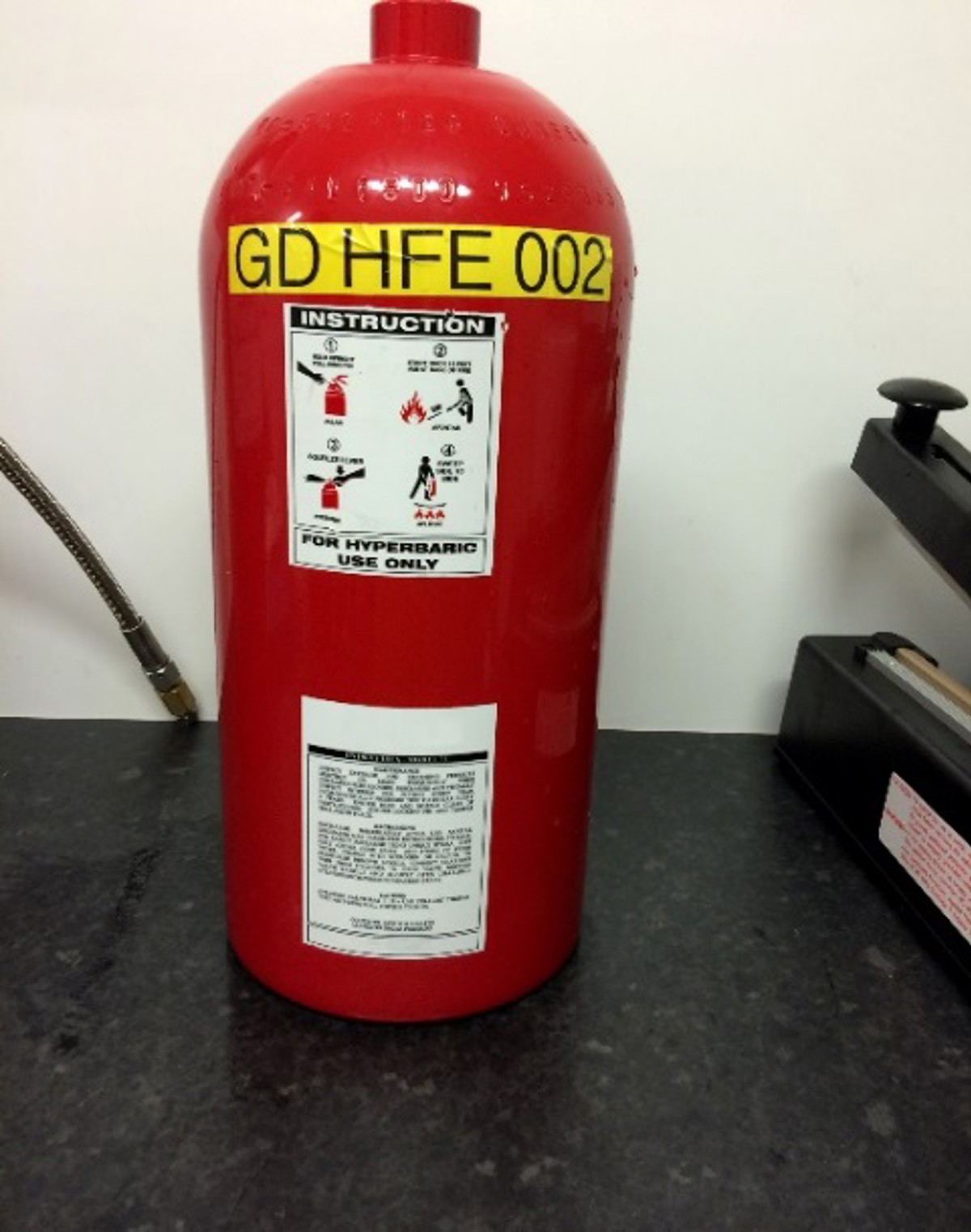

Fire extinguisher

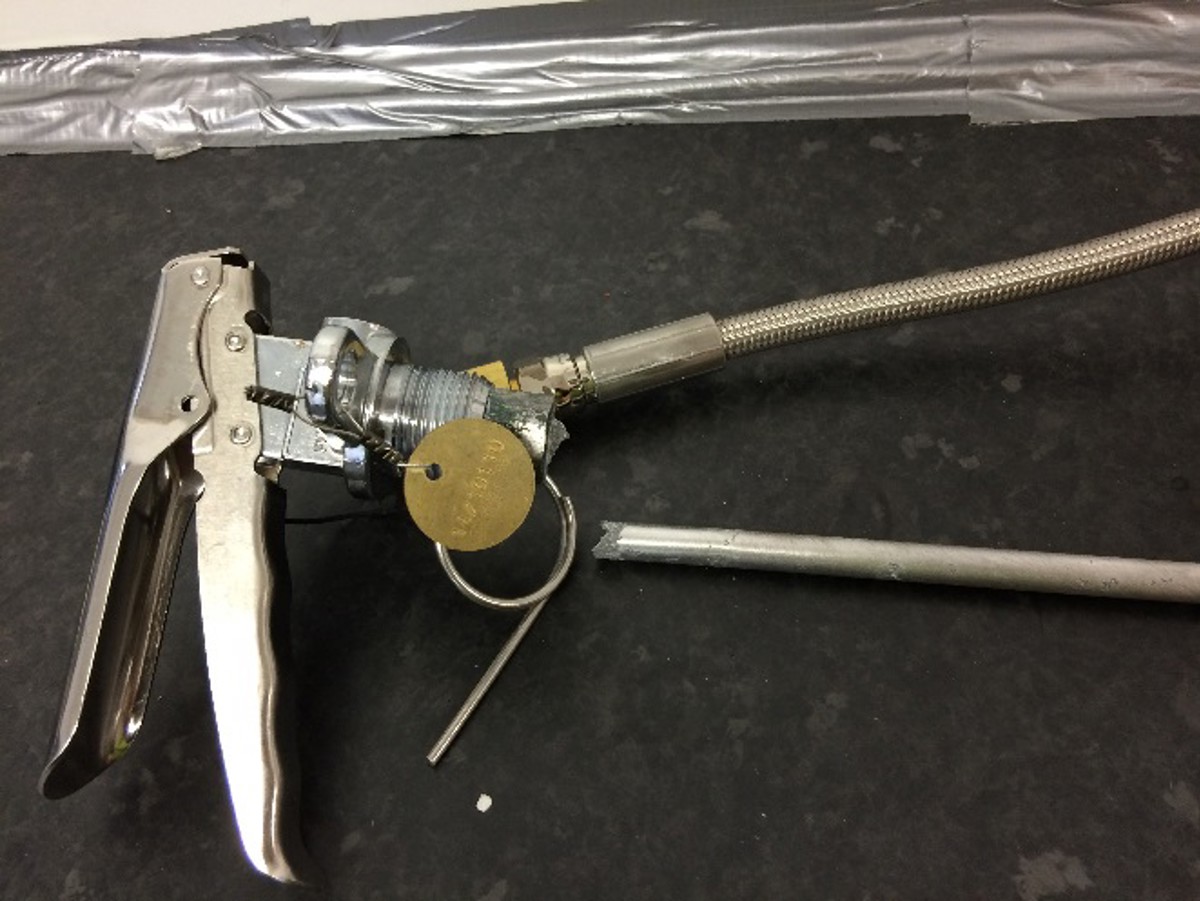

Pillar valve

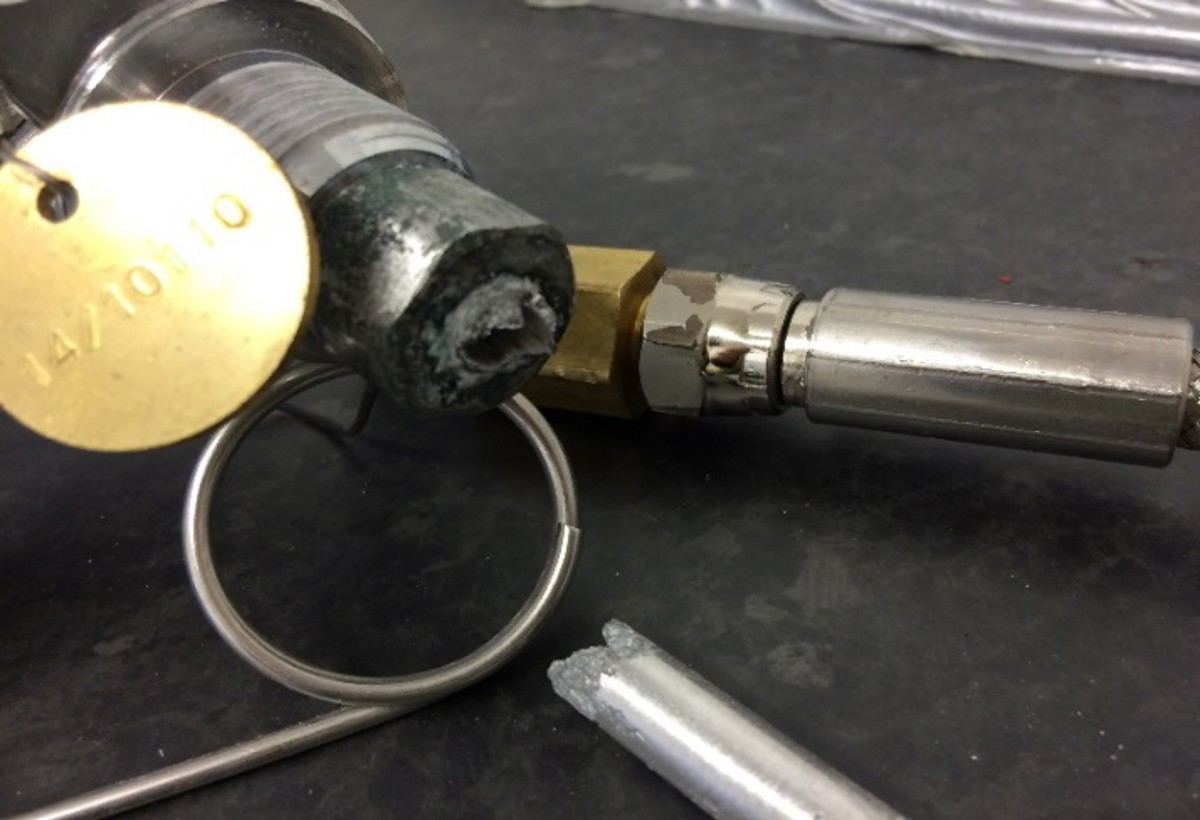

stem fell apart in corroded area

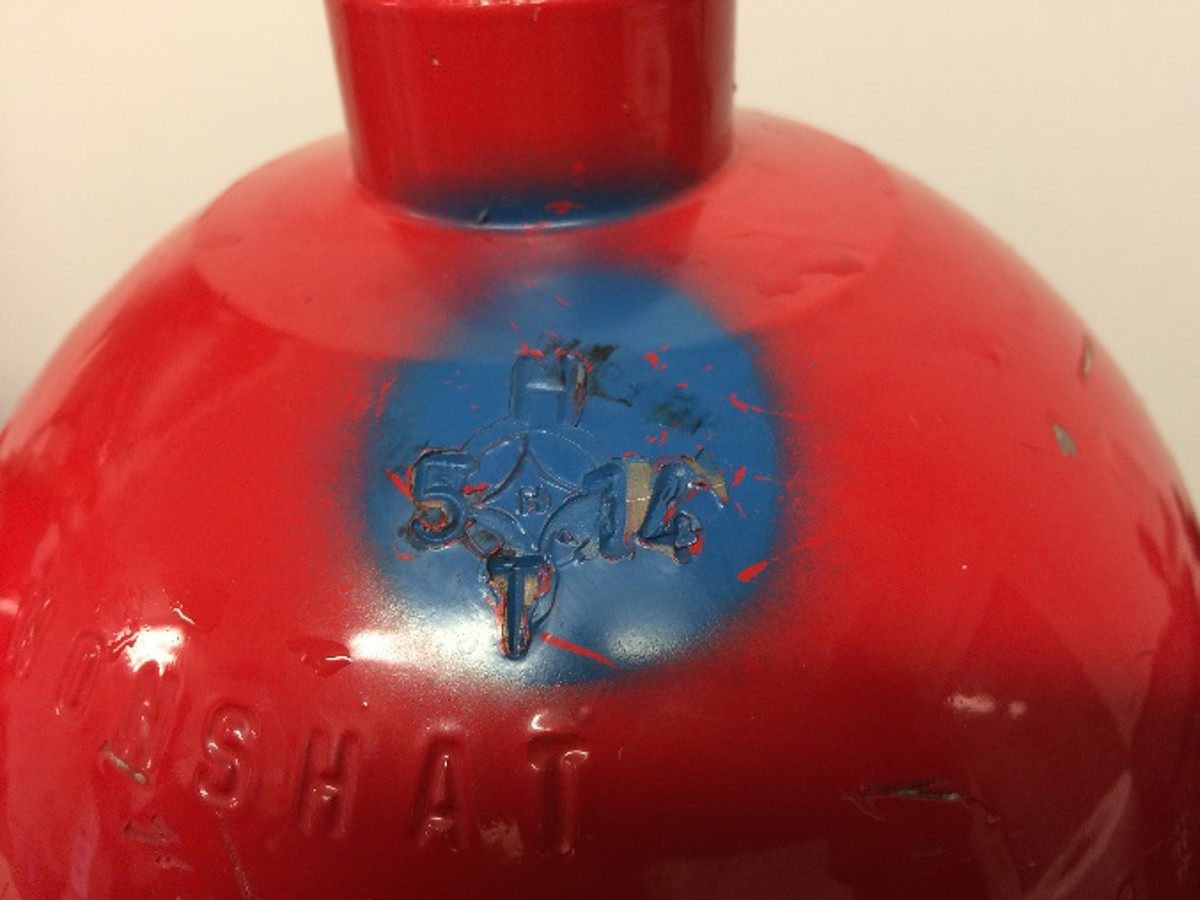

Markings on cylinder

Members are reminded of the corrosion potential with dissimilar metals, particularly in the case of pressure vessels. Our member notes that had the fire extinguisher been required for use in a hyperbaric chamber all that would have happened would have been a release of gas when operated. Our member is in direct contact with the supplier to try and resolve the issue.

Latest Safety Flashes:

Fall from height during mooring due to rope tension reaction

Rope became entangled with the propellor during mooring operations of a tanker causing the operator to lose balance and fall onto the lower platform.

Read more
Missing protection – progressive wear on hydraulic hoses causes damage

During an inspection, several hydraulic hoses and fuel hoses were found in direct contact with surrounding surfaces and sharp edges.

Read more
Small engine room fire – flammable object ignited

While ramping up the starboard main engine, a small flammable foreign object ignited.

Read more
Positive: damage to Fast Rescue Craft davit wire rope caught before failure

During routine checks, it was observed that the FRC davit wire rope had a visible fracture at the socket termination area.

Read more
BSEE: Miscommunication and trapped pressure causes injury during valve maintenance

BSEE has published Safety Alert 509 relating to a gas release incident on an offshore platform.

Read more

IMCA Safety Flashes summarise key safety matters and incidents, allowing lessons to be more easily learnt for the benefit of the entire offshore industry.

The effectiveness of the IMCA Safety Flash system depends on the industry sharing information and so avoiding repeat incidents. Incidents are classified according to IOGP's Life Saving Rules.

All information is anonymised or sanitised, as appropriate, and warnings for graphic content included where possible.

IMCA makes every effort to ensure both the accuracy and reliability of the information shared, but is not be liable for any guidance and/or recommendation and/or statement herein contained.

The information contained in this document does not fulfil or replace any individual's or Member's legal, regulatory or other duties or obligations in respect of their operations. Individuals and Members remain solely responsible for the safe, lawful and proper conduct of their operations.

Share your safety incidents with IMCA online. Sign-up to receive Safety Flashes straight to your email.
