Pinch points on winches – hand safety

  • Safety Flash
  • Published on 31 October 2007
  • Generated on 3 July 2025
  • IMCA SF 09/07
  • 1 minute read

A Member has identified a potentially serious hazard on a tugger winch, temporarily installed on a vessel deck, wherein a hand could be ‘drawn in’ between the winch drum cheek plate and the winch base.

Imcasf09 07 Image1

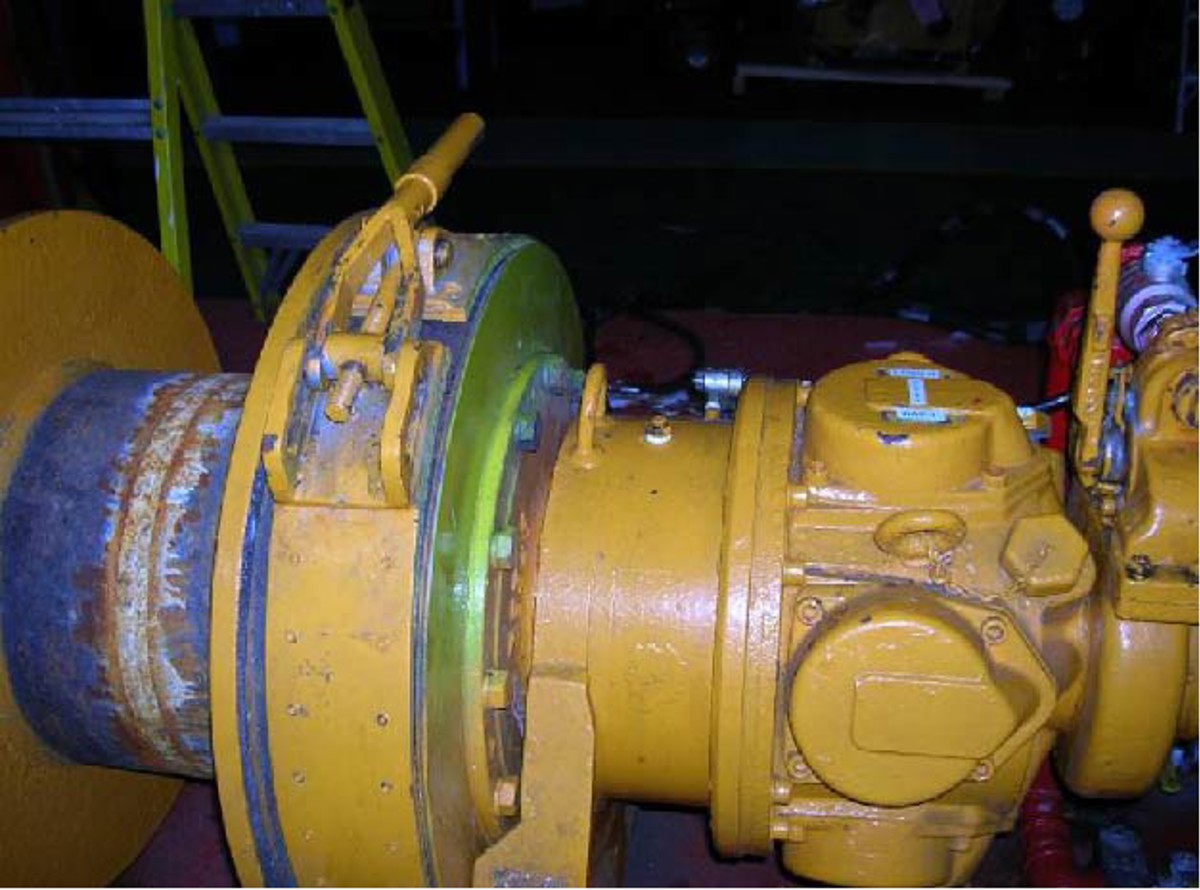

typical tugger winch

Imcasf09 07 Image2

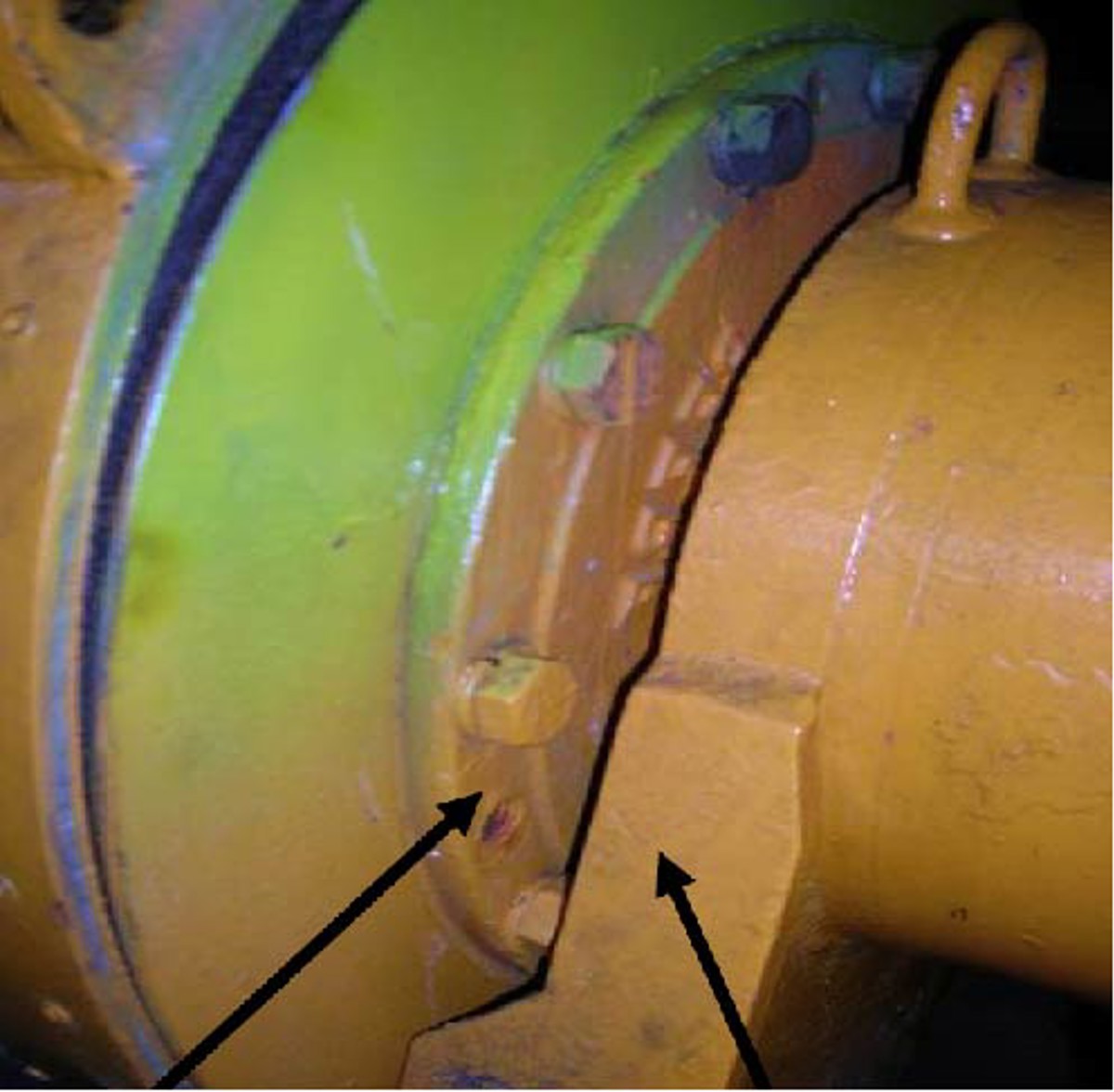

detail of gap between winch drum cheek plate and the winch base (L) rotating ring of bolts (R) stationary winch base

The operator for such a winch would typically stand with his right hand on the control lever.

It is possible that an operator (or colleague standing nearby) could put his left hand on the winch base, for example to brace against vessel movement. If the winch was pulling in at the same time a hand could be drawn into the gap between the bolts and the base.

Lessons learned

These winches or similar models are in widespread use and not all of them have adequate guards. It is recommended that winches with unguarded pinch-point hazards are identified and appropriate actions taken as an immediate measure:

  • Hazard warning signs should be applied to the winches.

  • Personnel operating or working in the vicinity of the winches should be briefed about the potential hazard.

An example of an appropriate guard that could be fitted to such a winch is shown below:

Imcasf09 07 Image3

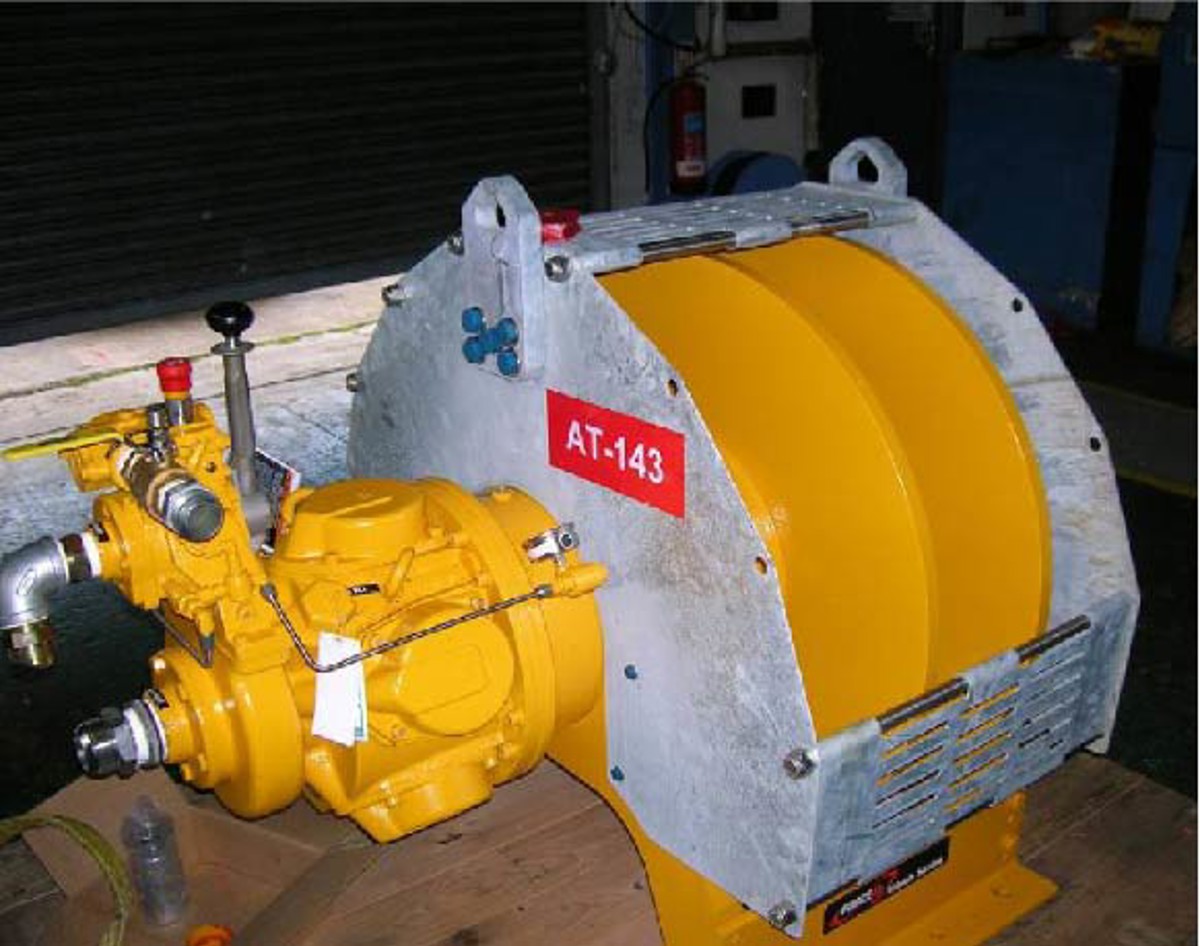

example guard for tugger winch
