Lost time injury (LTI): Fall overboard/fall from height

  • Safety Flash
  • Published on 31 October 2014
  • Generated on 14 December 2024
  • IMCA SF 17/14
  • 3 minute read

A member has reported an incident which a member of the crew of a hopper barge fell overboard onto a cylinder fender attached to the quay wall.

What happened?

He sustained serious injuries to his spine (twelfth thoracic vertebrae crushed and splintered). The incident occurred whilst alongside, during refitting a rope connection between the hopper barge and the quay wall. At the time of the accident the empty hopper barge was firmly moored at the quay wall, at one of the berths.

Due to adverse weather conditions (wind force 9, rain showers and swells in the inner harbour) and rising tide, the head line became slack. The injured person was on the foredeck to check the rope connection and to refit the rope. During refitting of the rope he had to bend slightly with his upper body overboard. When re-fixing the head line, the barge struck the berth fenders due to the wave motion in the harbour basin. As a result of this the injured person lost his balance and fell from a height of about 2m overboard onto the cylinder fender on the quay wall. He was rescued, using a ladder from the berth-fender and brought on board for transfer to hospital.

IMCASF17 14 Image1

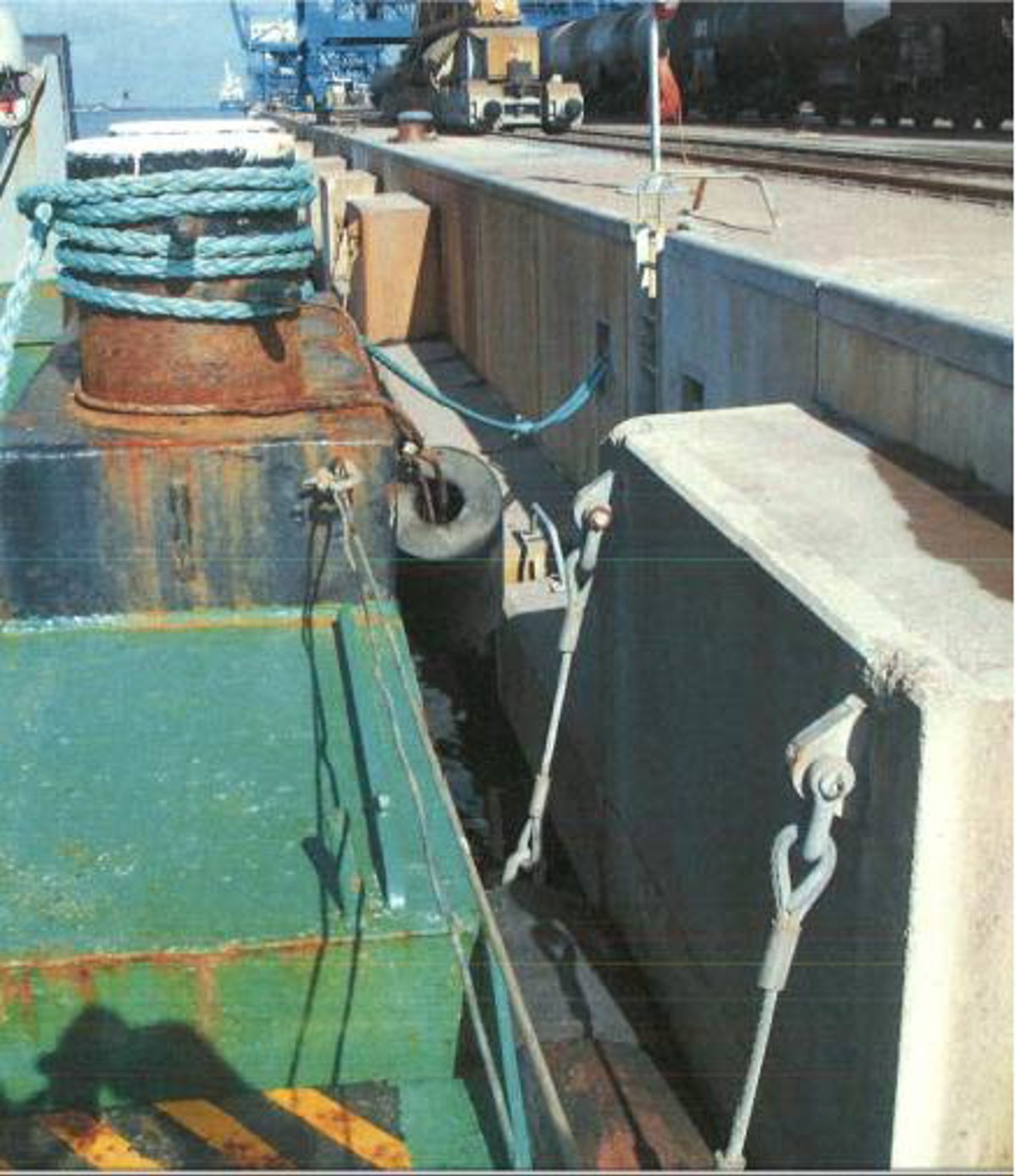

High position of bollard and low position of top hand rail

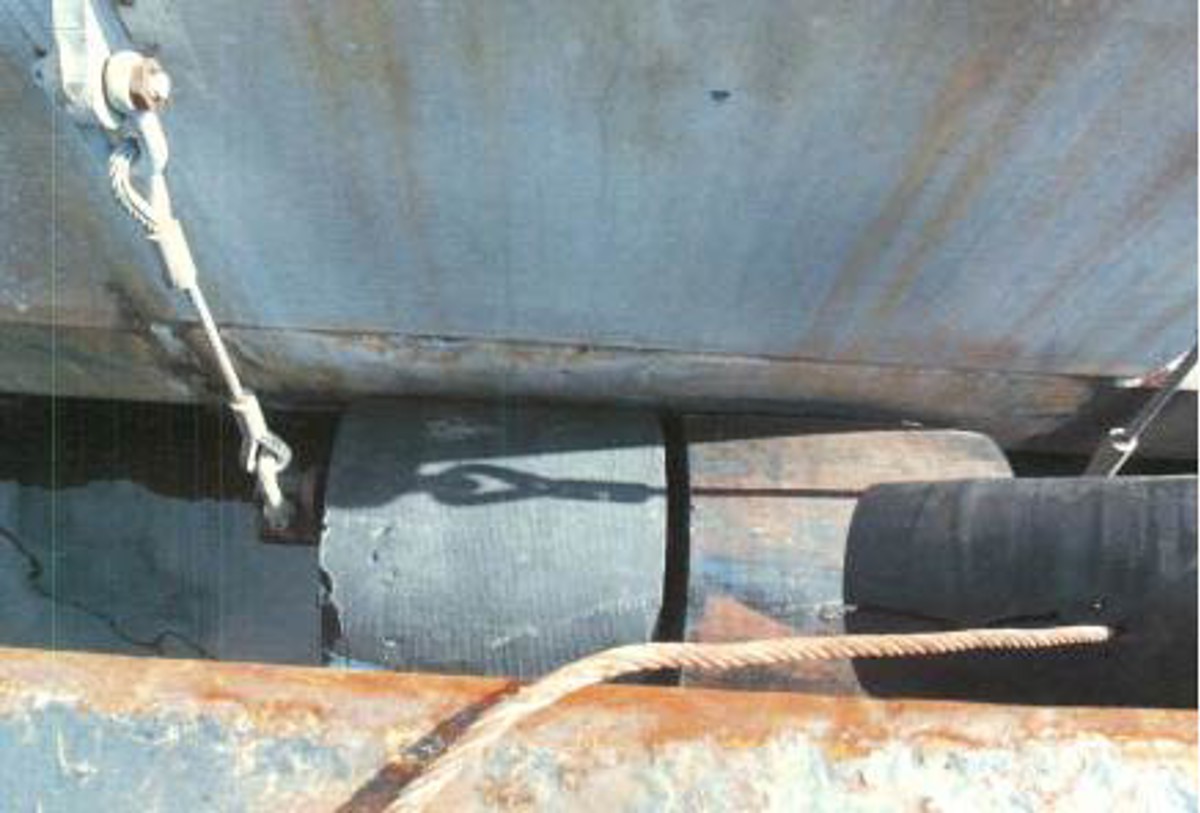

Cylinder fender on quay wall, onto which the casualty fell

Cylinder fender on quay wall, onto which the casualty fell

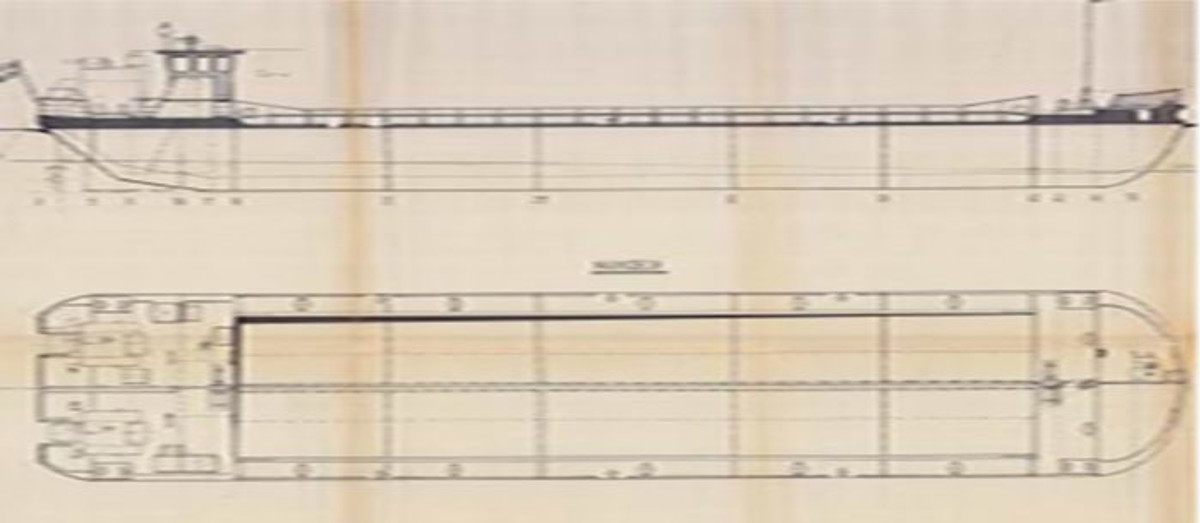

Barge showing where incident occurred

Barge showing where incident occurred

Our member identified the following causes to the incident:

  • The injured person was working alone.
  • He found it necessary to lean overboard and used no personal protective equipment (PPE) or restraint mechanism.
  • There was a mechanical jolt of barge against quay wall fender.
  • The relatively high position of the bollard and the low position of the top hand rail.
  • Poor weather conditions.
  • The working conditions and the weather conditions had not been properly risk assessed.

The following lessons were identified:

  • Never lean out overboard without first securing yourself – everyone is responsible for their own safety.
  • In poor weather conditions always work on deck in pairs and secure yourself to the deck.
  • Crew need to remain aware that they can ‘Stop the job’ no matter who they are.
  • Increase due care level for ‘routine’ jobs – be better informed about risk and control measures.
  • As far as practical, use a capstan head or mooring winch to affix mooring lines.
  • Improve the relatively high position of the bollard and the low position of the top hand rail.
  • In case of suspected spinal injury do not move the injured person unnecessarily.

In 2013, falls from height formed 10% of recorded LTIs amongst IMCA member’s. There were clear lessons to reiterate to all members’ vessel management and crews with regard to:

  • the correct use of fall restraint
  • full and proper risk assessment
  • ensuring a safe system of work.
