Failure of dive chamber overhead door centre pin

  • Safety Flash
  • Published on 22 July 2021
  • Generated on 14 December 2024
  • IMCA SF 20/21
  • 2 minute read

Minutes after a dive team transferred from the entry lock into the diving bell, there was a failure of the diving bell overhead door centre pin.

What happened?

A “bang” was heard and it was seen that components of the top door mechanism had failed.

The bell and dive system remained safe, there was no loss of pressure.  Following discussion with the team onboard the door was lowered in a controlled manner supported by the diver recovery hoist in conjunction with the top door hydraulic ram. The divers were transferred to an adjacent chamber and the system made safe.

The top door hinge pin, weighing 0.5 kg, fell from its position approximately 1.8 m to the deck of the entry lock; there was no-one in the entry lock at the time.

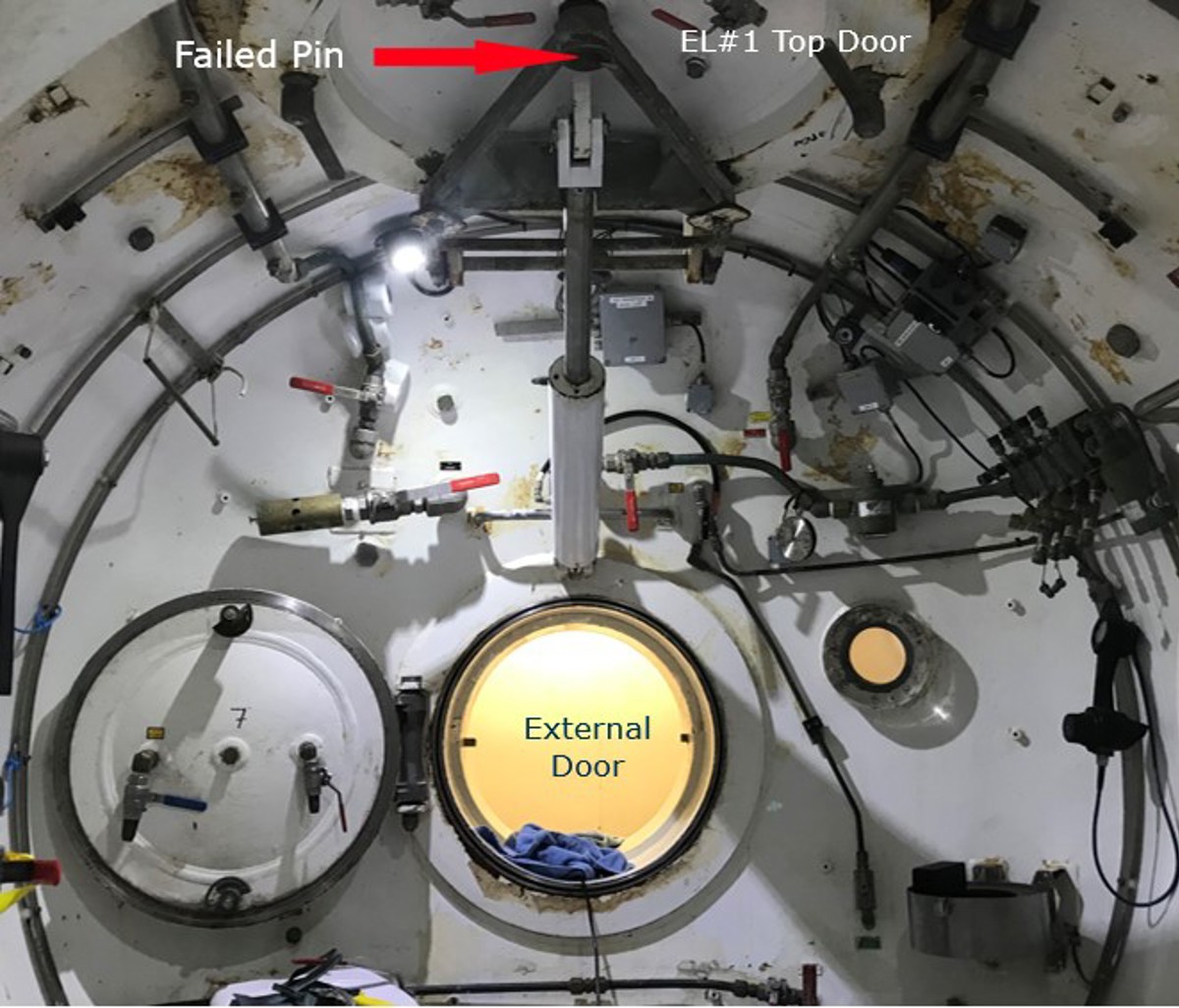

the entry lock

The entry lock

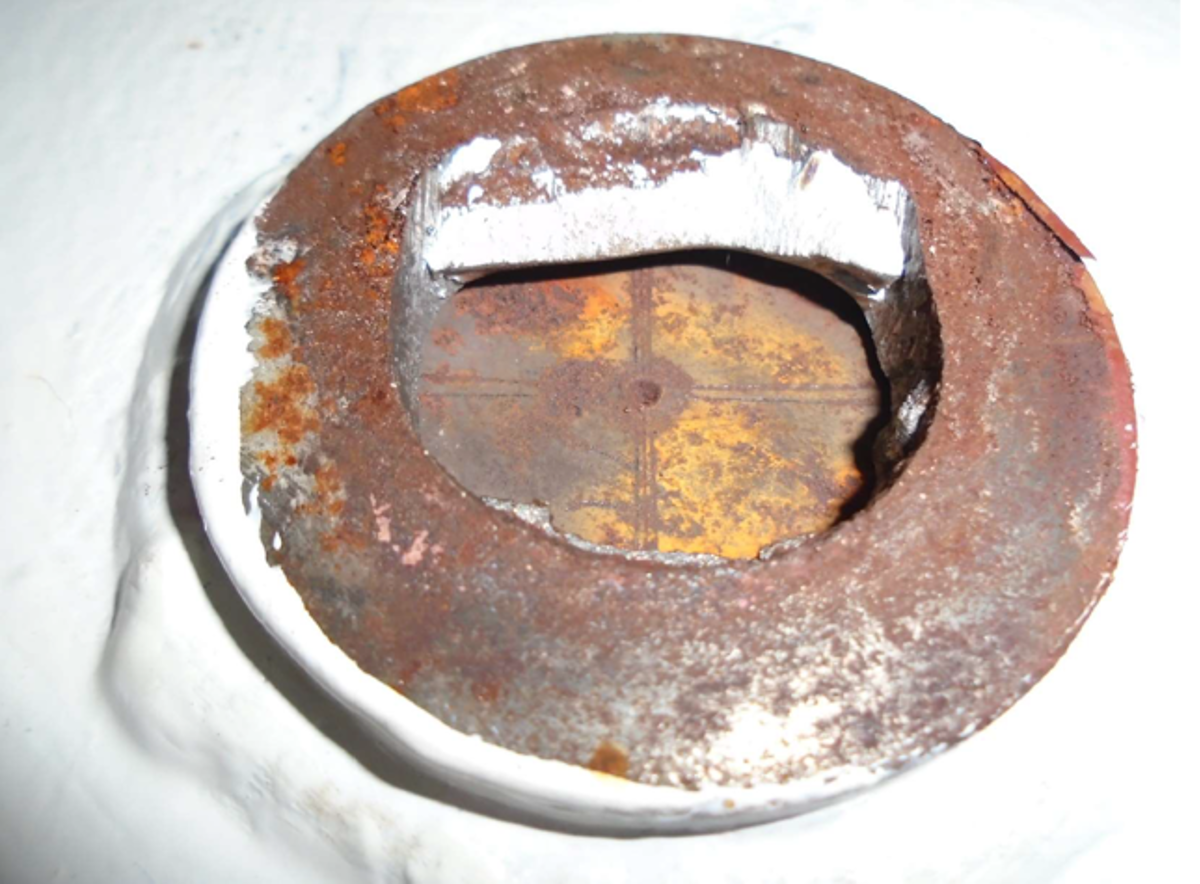

portion of pin remaining on door

Portion of pin remaining on door

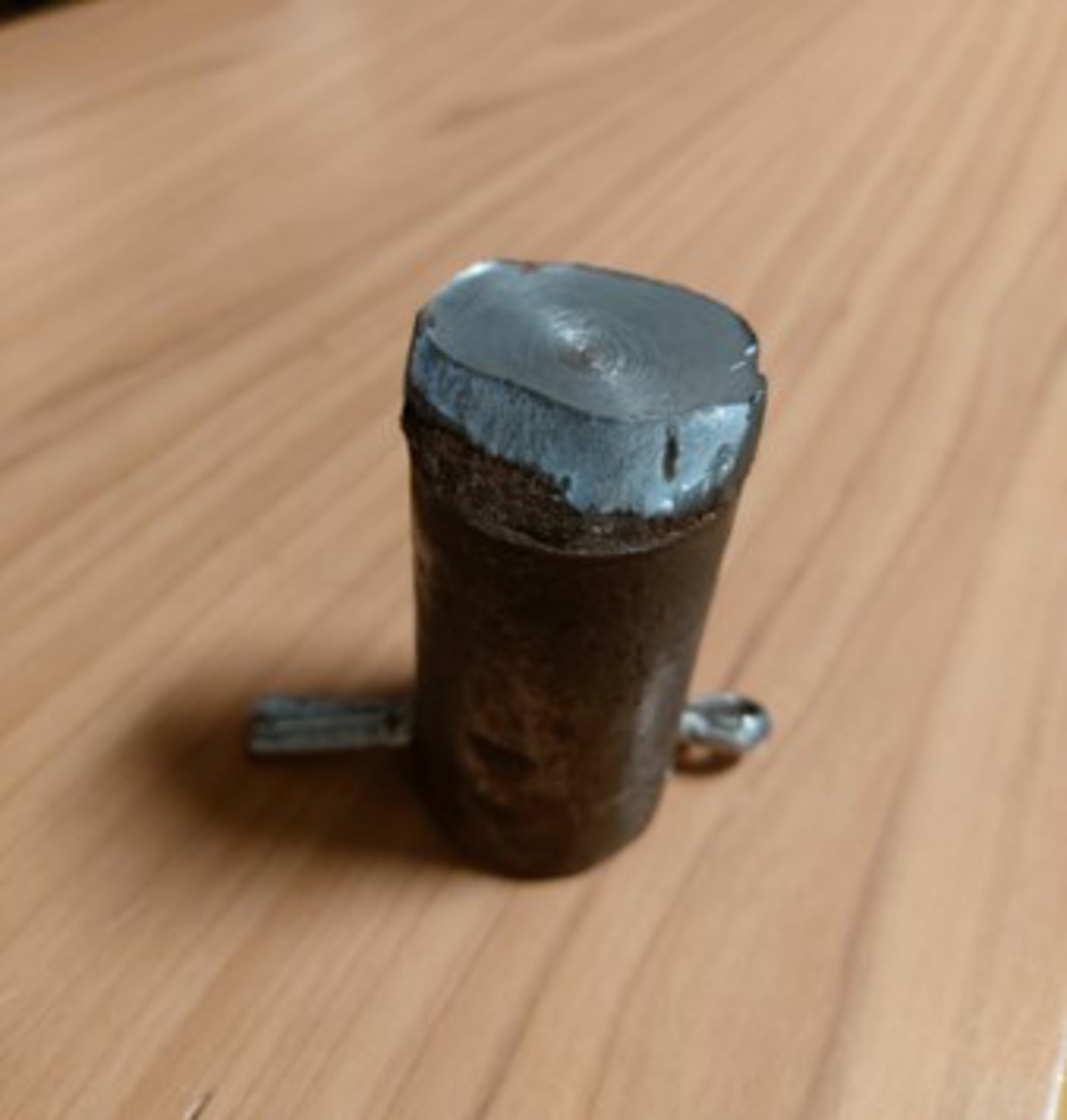

broken pin section

Broken pin section

Our member notes that investigation is still ongoing including (and not limited to) design review, metallurgical analysis etc.

This failure appears to be limited to this specific design of hinge and operating mechanism.  It should be noted that the hydraulic ram did not act directly onto the pin that failed. The hydraulic ram was, however, directly attached to the door (via clevis).

Our member estimates that the door would have been operated between 1500 – 2000 times per year for an average diving year (200-250 days diving), and suggests that the root cause is likely to be design related, corrosion and cyclic stress fatigue cracking (applied over many years).

Actions

Doors with a similar design should be checked for cracks at the earliest opportunity.
