Action error – Was an ASOG in place?
- DP Event
- Published on 13 December 2021
- Generated on 21 November 2026
- DPE 04/21
- 1 minute read
Observation
Jump to:

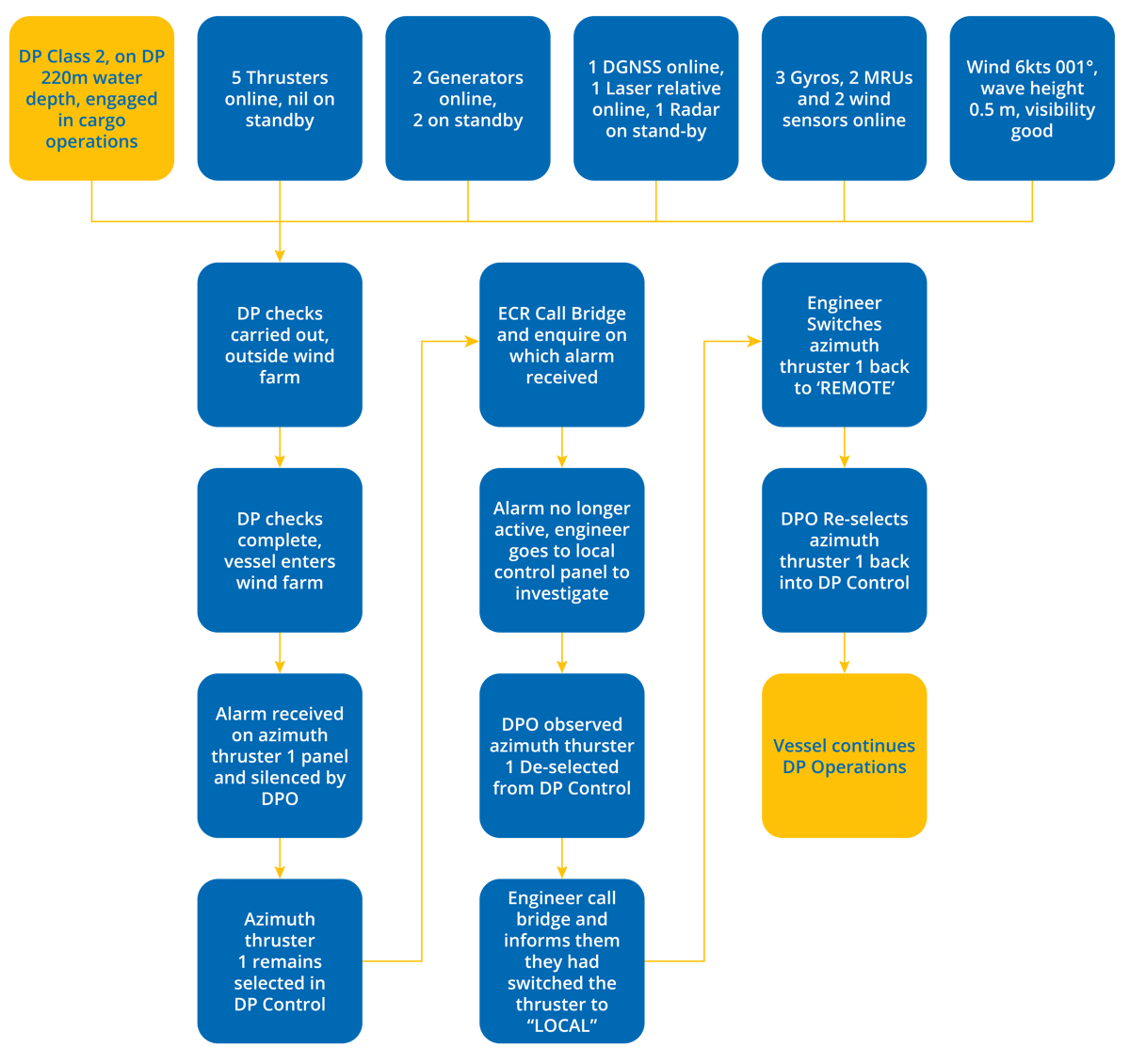

This was a simple case of Key DP personnel not being included in the ASOG process.
Considerations
This was a simple case of Key DP personnel not being included in the ASOG process, the ASOG should clearly indicate how critical machinery should be treated whilst carrying out the industrial mission of the vessel. If intrusive fault finding is required, then a change of status would/should be required. The engineer did not consider the consequences of taking the thruster into local control.
This event highlights the need for good operational planning and a detailed accurate ASOG. IMCA M 220 Guidance on operational activity planning, contains guidance on this subject. Section 7,Qualification and Knowledge Requirements of Key DP Personnel (IMCA M117) – gives guidance for Key DP Personnel.
Although not related to the event the number of references seems inadequate. IMO MSC Circ. 645 and IMO MSC.1 Circ. 1580 guidance documents state that for DP 2 or 3 operations:
There is a requirement for three independent position references simultaneously available during operation based on two different principles. See IMCA Information Note No.1567 which was published in July 2021.
