Instability of position reference systems
- DP Event
- Published on 30 June 2016
- Generated on 27 October 2026
- DPE 02/16
- 1 minute read

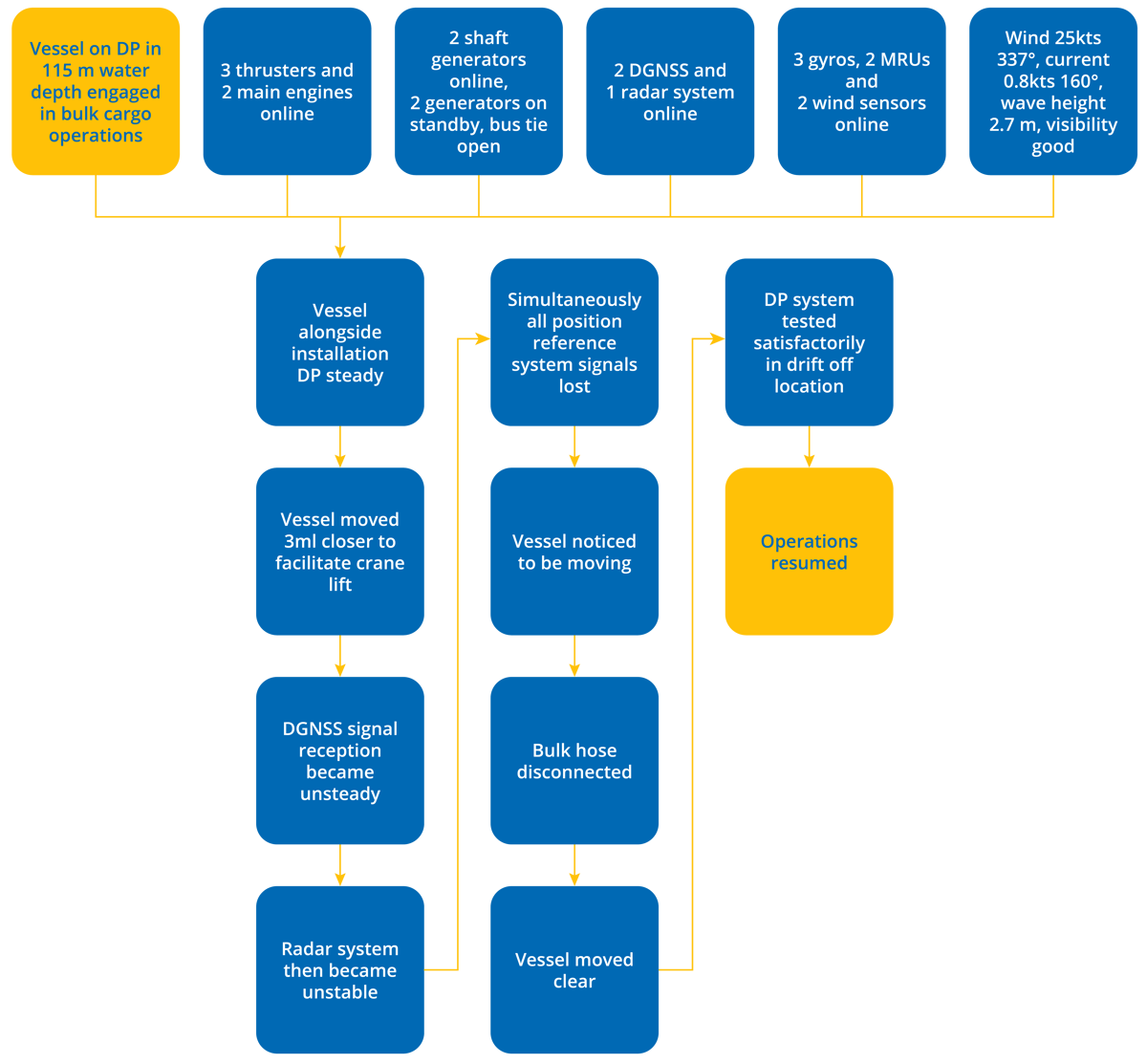

Incident
Operators need to be aware of shielding and shadowing in similar situations.
Considerations
- It is not clear from the report whether it was the differential correction signal or satellite constellation that was shielded, however operators need to be aware of shielding and shadowing in similar situations.
- The GNSS constellation screen should be consulted and considered prior to moving closer to a possible obstruction.
- The reflector for the radar system might not have been sited for optimum performance; did the crane shield the radar from the reflector?
