Fire in engine space on crew transfer vessel (CTV)

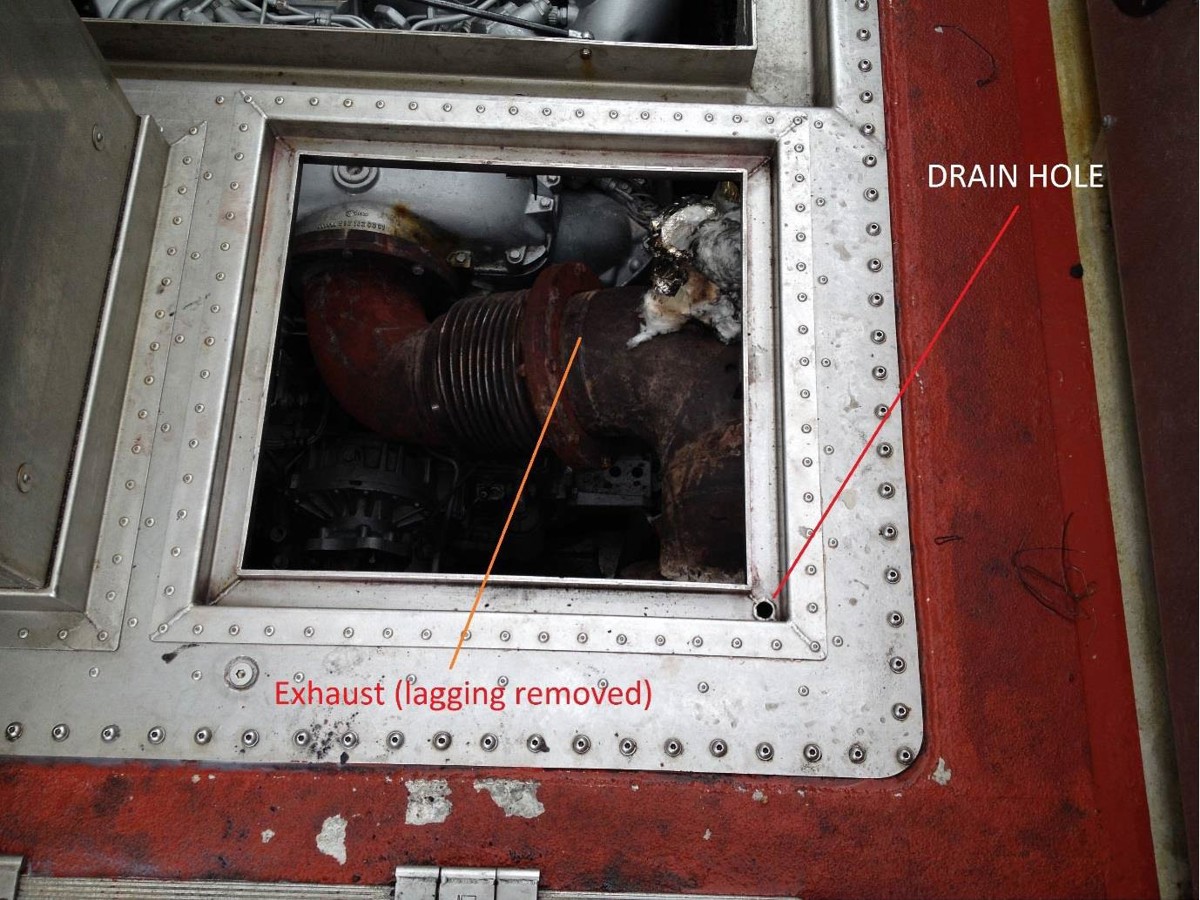

The incident occurred when on passage to an offshore wind farm. Shortly after leaving port, the fire alarm was activated in the starboard engine. Dark smoke was observed coming from the drain hole in the after inspection hatch of the starboard engine. On the CCTV into the engine space there was no indication of flames.

The starboard engine was shut down and full fire procedures were carried out. The COâ‚‚ system was also used, however on inspection after the incident it was found that the system had not deployed. Shore authorities were alerted and the vessel returned to port on one engine. All staff were safely landed ashore and the fire confirmed to be extinguished.

• Normal checks on the engines and inspection of the engine and jet spaces had been carried out before the voyage, and all was found to be in order.

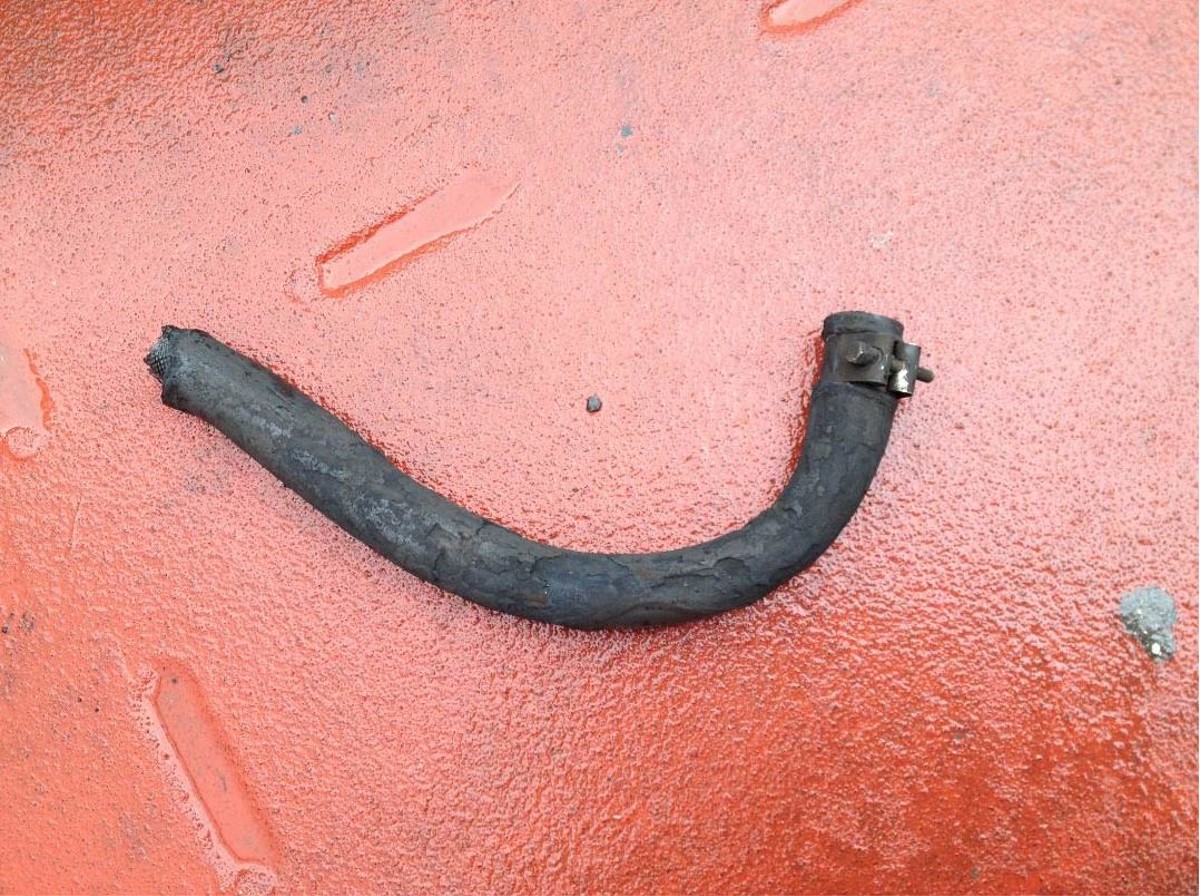

• The immediate cause of the fire was a rubber drain hose from a hatch combing catching fire as it was in contact with the exhaust system.
• Although the drain pipe was heat resistant and the main engine exhaust was covered in thermal insulation, the drain pipe was badly positioned, crossing over the exhaust system.
• The flames from the burning pipe were extinguished by oxygen starvation as a result of the shutdown of the engine fans and ventilators. The COâ‚‚ smothering system was not actually deployed.

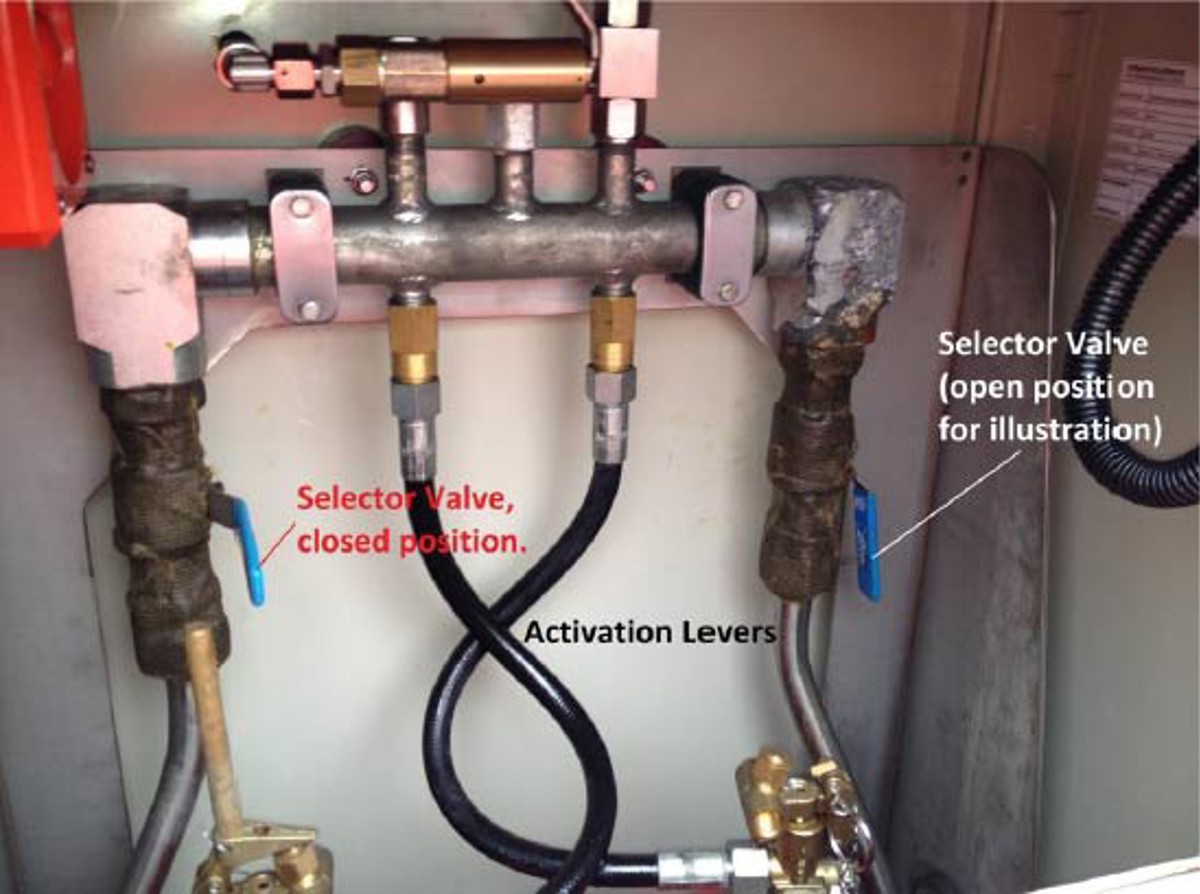

• The valve to the engine space had not been opened.

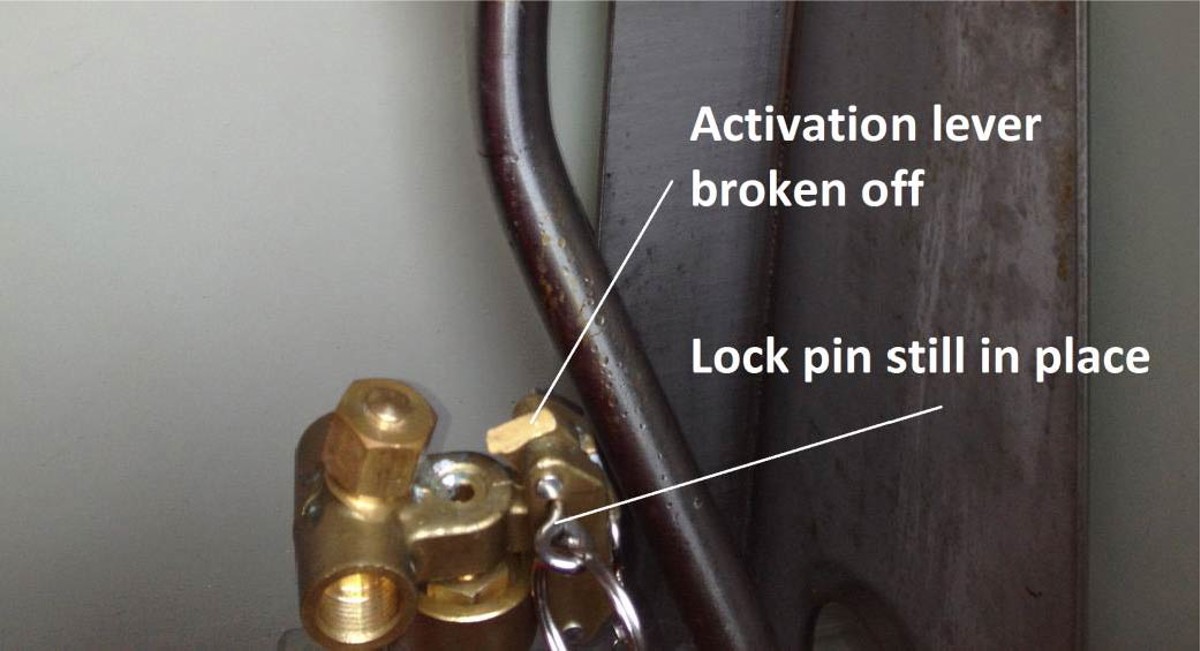

• The pin had not been removed from the valve head.
• A brass lever had been forced in the wrong direction causing it to shear.
• The instructions for the activation and effective use of the CO² system were not adequate to purpose.
• They were located on the external surface of the drop down access door.
• They are not readily visible to crew operating the system.
• They did not highlight the need to remove the safety pin on the activation lever of the cylinder; The following actions were taken with regard to the failure to deploy the CO² smothering system.
• Better and more detailed operating instructions issued to vessels with similar CO² smothering systems – including pictorial instructions for use.
• Ensured that all crew members were fully conversant with the fixed fire fighting system fitted to the vessel and how to operate that fire fighting system.
