Near-miss: Crane winch wire damaged crane cab during heavy seas

  • Safety Flash
  • Published on 1 November 2011
  • Generated on 14 December 2024
  • IMCA SF 12/11
  • 2 minute read

A Member has reported an incident in which, owing to the sudden movement of the vessel, a crane winch wire hit the crane cab with the operator inside, causing damage to the cab structure.

What happened?

The operator was unharmed. The incident occurred after completing the wet storing of a spool using the single fall main block. The crane boom, complete with suspended spool lift rigging, was recovered to the main deck. Whilst the block was over the deck, the vessel pitched and rolled heavily thus causing the crane block to swing adversely. The crane operator attempted to recover the situation. As he attempted to recover the block, the wire immediately above the block hit the crane cab damaging the cab structure and breaking glass. The impact showered the crane operator with glass.

This ‘routine’ operation had the potential to be a fatality. There was no designated landing area for which to land the crane block and its attached rigging safely. This had been considered a ‘routine’ operation yet the risks had not been fully captured during the planning stage.

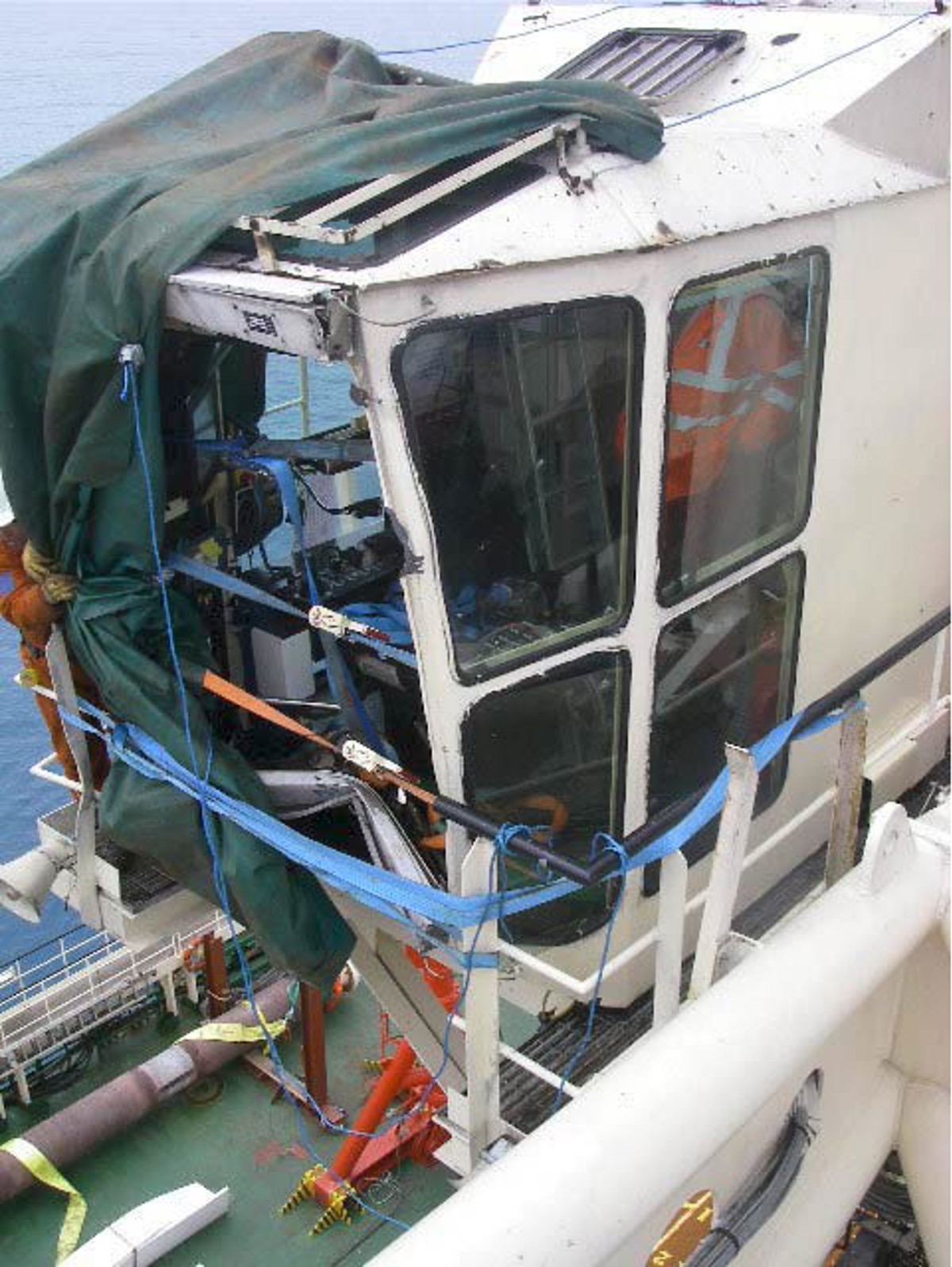

Crane cab showing damage

crane cab showing damage

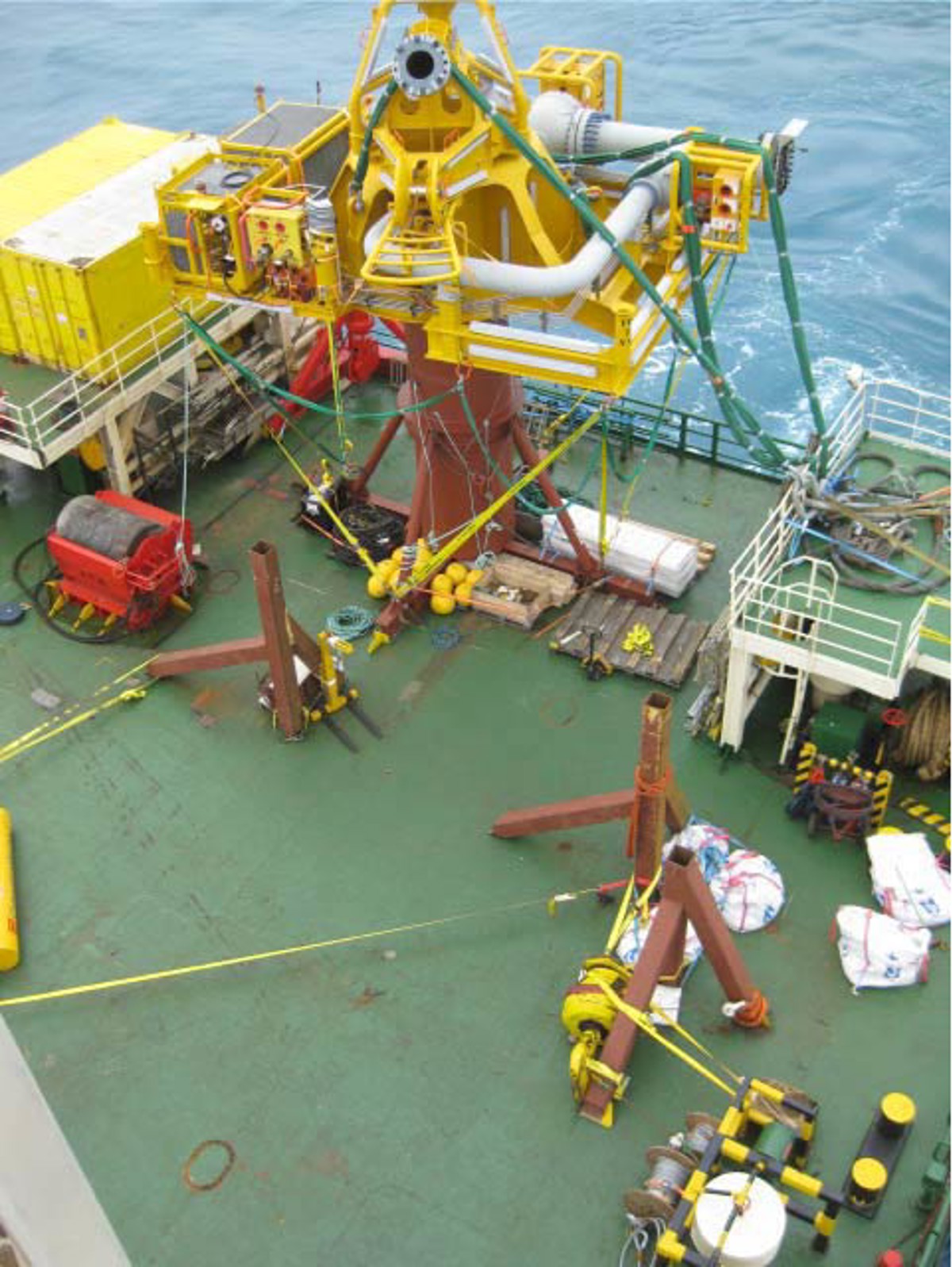

Landing area seen from above (circled)

landing area seen from above (circled)

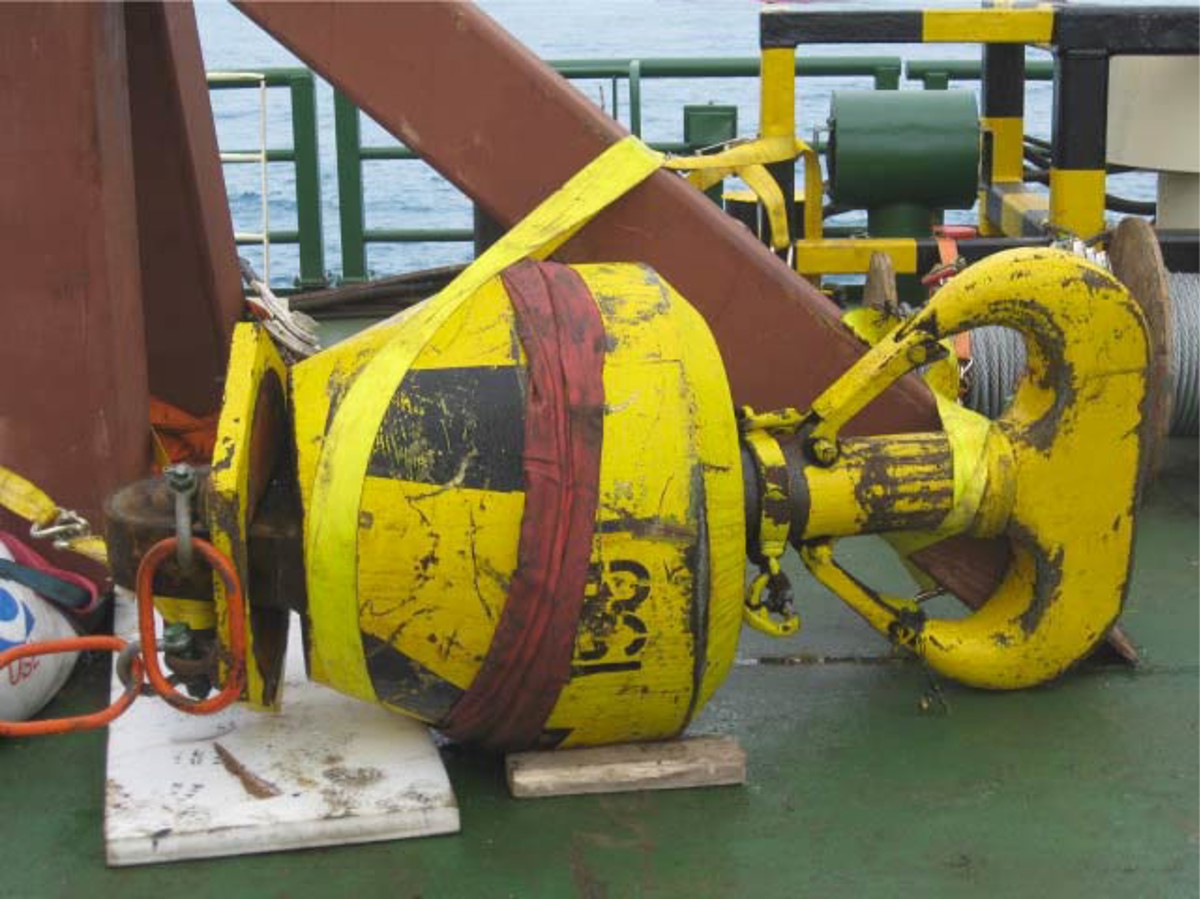

Crane block

crane block

What were the causes?

Subsequent to an investigation, the following were noted:

  • The landing area on the aft deck for the block and rigging was very restricted due to a tall subsea structure being in the same area.

  • The crane boom position had to be at a 12m radius and the block had to be lifted high in order for the block and attached rigging to be lifted over the subsea structure. This position left the block at the same height as the crane cab.

Lessons learnt

The following recommendations were made:

  • A safe landing area on the main deck should be identified and clearly marked both on the deck itself and on the General Arrangement (GA) drawings.

  • If it becomes necessary to use this area, a specific risk assessment should be required and an alternative, temporary safe landing area identified.

  • Lift planning should cover crane operations from start to finish, including the initial movement of the crane and also recovery of rigging to deck.
